TLV1117LV33DCYR: Features, Specs & More
In the world of electronics, precision and reliability are paramount, especially when it comes to voltage regulation. One component that stands out in achieving stable voltage output is the TLV1117LV33DCYR, a Low Dropout (LDO) regulator designed to deliver a consistent 3.3V output with impressive efficiency and accuracy. In this comprehensive article, we'll delve into the intricacies of the TLV1117LV33DCYR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TLV1117LV33DCYR's Manufacturer
TLV1117LV33DCYR's Overview

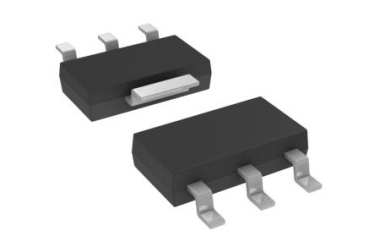

The TLV1117LV33DCYR is an LDO (Low Dropout) voltage regulator manufactured by Texas Instruments. It is designed to provide a stable 3.3V output with a maximum current of 1A, making it suitable for a wide range of applications where a clean and precise voltage supply is required.
Key Features
Let's delve into the standout features that make the TLV1117LV33DCYR a standout in the world of electronics:
· The TLV1117LV33DCYR is classified as an LDO (Low Dropout) regulator, renowned for its efficient voltage regulation capabilities.
· It provides a fixed output voltage of 3.3V, ideal for powering sensitive electronic components.
· Capable of delivering up to 1A of current, ensuring ample power for a variety of devices and systems.
· Boasting an impressive accuracy of ±1.3%, ensuring precise voltage regulation in critical applications.
· With a low minimum input voltage of 2V, it accommodates varying power sources effectively.
· Accepts input voltages up to 5.5V, ensuring versatility in different operational environments.
· Features a minimal dropout voltage of 0.7V at 1A load, maintaining stable output even with low input voltages.
· Exhibits excellent line regulation of 5mV, minimizing voltage fluctuations under changing load conditions.
· Offers reliable load regulation of 35mV, ensuring consistent performance across varying current demands.
· Operates efficiently with a low quiescent current of 0.1mA, optimizing power consumption.
· Withstands high power dissipation of up to 1590mW, suitable for demanding applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TLV1117LV33DCYR:
Type | Parameter |
Type | LDO |
Number of Outputs | 1 |
Polarity | Positive |
Accuracy (%) | ±1.3 |
Output Type | Fixed |
Output Voltage (V) | 3.3 |
Maximum Output Current (A) | 1 |
Minimum Input Voltage (V) | 2 |
Maximum Input Voltage (V) | 5.5 |
Maximum Dropout Voltage @ Current (V) | 0.7@1A |
Line Regulation | 5mV |
Load Regulation | 35mV |
Maximum Quiescent Current (mA) | 0.1 |
Maximum Power Dissipation (mW) | 1590 |
Junction to Ambient | 62.9°C/W |
Junction to Case | 47.2°C/W |
Special Features | Current Limit|Thermal Shutdown Protection |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.7(Max) |
Package Width | 3.7(Max) |
Package Length | 6.7(Max) |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | SOT |
Supplier Package | SOT-223 |
Pin Count | 4 |
Lead Shape | Gull-wing |
Applications
The TLV1117LV33DCYR stands out with its robust set of specifications:
· Precision: With an accuracy of ±1.3%, it ensures reliable voltage regulation.
· Efficiency: Low dropout voltage of 0.7V at full load (1A), maximizing efficiency in power-sensitive applications.
· Versatility: Wide input voltage range (2V to 5.5V) accommodates various power sources.
· Protection: Features like current limit and thermal shutdown protection enhance durability and safety.
TLV1117LV33DCYR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In conclusion, the TLV1117LV33DCYR stands tall as a dependable choice for engineers and designers seeking a robust LDO regulator solution. Its precise voltage regulation, coupled with features like thermal shutdown protection and current limit, ensures smooth operation across diverse electronic applications.
