DAC8560IADGKR: Features, Specs & More
In the realm of electronics, precision and reliability are paramount. Today, we delve into the world of Digital-to-Analog Converters (DACs), focusing on the TI DAC8560IADGKR. In this comprehensive article, we'll delve into the intricacies of the DAC8560IADGKR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
DAC8560IADGKR's Overview

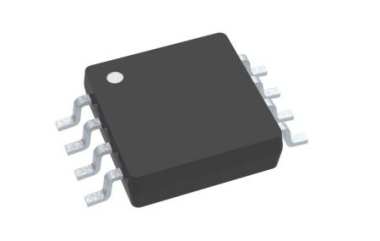

The DAC8560IADGKR is a 16-bit, single-channel DAC utilizing a resistor-string architecture. Designed for general-purpose applications, it converts digital signals into precise analog voltages with a resolution of 16 bits. This high resolution ensures accurate representation of digital data in analog form, crucial for various electronic systems demanding fidelity and reliability.
Key Features
Let's delve into the standout features that make the DAC8560IADGKR a standout in the world of electronics:
· The DAC8560IADGKR boasts a high-resolution capability of 16 bits, ensuring precise conversion of digital signals to analog voltages.
· With a swift conversion rate of 200ksps (kilosamples per second), it efficiently processes data for real-time applications.
· Supporting versatile connectivity options including 3-Wire, SPI, QSPI, and Microwire, it integrates seamlessly into diverse digital systems.
· It provides a unipolar voltage output, delivering consistent analog signals as required by various electronic applications.
· Offering flexibility, it accommodates both internal and external voltage references to suit different operational needs.
· Operating on a single supply voltage starting from 2.7V, it ensures efficient power usage in various electronic designs.
· With a wide operational range from -40°C to 105°C, it remains reliable in extreme environmental conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the DAC8560IADGKR:
Type | Parameter |
Converter Type | General Purpose |
Architecture | Resistor-String |
Resolution | 16bit |
Conversion Rate | 200ksps |
Number of DAC Channels | 1 |
Number of Outputs per Chip | 1 |
Maximum Settling Time (us) | 12(Typ) |
Digital Interface Type | Serial (3-Wire, SPI, QSPI, Microwire) |
Output Type | Voltage |
Output Polarity | Unipolar |
Voltage Reference | Internal|External |
Minimum Single Supply Voltage (V) | 2.7 |
Power Supply Type | Single |
Maximum Power Dissipation (mW) | 4.7 |
Integral Nonlinearity Error | ±12LSB |
Full Scale Error | ±0.5%FSR |
Signal to Noise Ratio | 88dB(Typ) |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.95(Max) |
Package Width | 3.1(Max) |
Package Length | 3.1(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | VSSOP |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The versatility of the DAC8560IADGKR makes it ideal for various applications, including:
· Industrial Automation: Control systems requiring precise analog voltage outputs.
· Consumer Electronics: Audio equipment, instrumentation, and sensor interfacing.
· Communications: Signal conditioning and modulation tasks.
DAC8560IADGKR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In conclusion, the DAC8560IADGKR stands out as a reliable, high-resolution DAC suitable for a wide range of demanding applications in the electronics industry. Its combination of precision, versatility, and compact design makes it an invaluable component for modern electronic designs.
