In the realm of electronics, precision and efficiency are paramount. Among the many components that drive modern devices, the ON Semiconductor NC7WZU04P6X stands out as a pivotal CMOS inverter, known for its compact design and robust performance. In this comprehensive article, we'll delve into the intricacies of the NC7WZU04P6X, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
NC7WZU04P6X's Overview

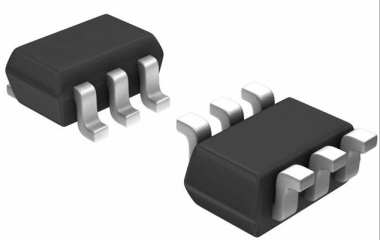

The NC7WZU04P6X is a 6-pin SC-70 Type CMOS inverter, intricately designed to convert logic signals with high precision. As part of ON Semiconductor's WZ logic family, it offers dual elements per chip, making it versatile for various digital applications.
Key Features
Let's delve into the standout features that make the NC7WZU04P6X a standout in the world of electronics:
· The NC7WZU04P6X belongs to the WZ logic family, offering specialized characteristics tailored for specific operational requirements.
· Designed as an inverter, it efficiently converts input logic levels to their complementary states with precision.
· Featuring two elements per chip, it provides dual functionality within a single compact package, optimizing board space.
· With a maximum propagation delay of 6.4 ns at 3.3V and 5.6 ns at 5V, it ensures rapid signal processing for time-critical applications.
· Built on CMOS technology, it combines low power consumption with high-speed operation, making it suitable for a wide range of applications.
· Supporting an operating voltage range from 1.8V to 5.5V, it accommodates diverse voltage requirements commonly found in modern electronic designs.
· With a maximum quiescent current of 1 µA, it minimizes power consumption during standby mode, enhancing overall energy efficiency.
· Capable of operating reliably from -40°C to 85°C, it maintains consistent performance across varying environmental conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the NC7WZU04P6X:
Type | Parameter |
Logic Family | WZ |
Logic Function | Inverter |
Number of Elements per Chip | 2 |
Maximum Propagation Delay Time @ Maximum CL (ns) | 6.4@3.3V|5.6@5V |
Absolute Propagation Delay Time (ns) | 11 |
Process Technology | CMOS |
Maximum Low Level Output Current (mA) | 8 |
Maximum High Level Output Current (mA) | -8 |
Minimum High Level Output Voltage (V) | 1.29 |
Maximum Low Level Output Voltage (V) | 0.55 |
Minimum Operating Supply Voltage (V) | 1.8 |
Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Maximum Quiescent Current (uA) | 1 |
Propagation Delay Test Condition (pF) | 50 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1(Max) |
Package Width | 1.25 |
Package Length | 2 |
PCB changed | 6 |
Standard Package Name | SOT |
Supplier Package | SC-70 |
Pin Count | 6 |
Lead Shape | Gull-wing |
Applications
Due to its compact size, low power consumption, and reliable performance, the NC7WZU04P6X finds applications in various fields including:
· Portable Electronics: Used in smartphones, tablets, and wearable devices.
· Embedded Systems: Integrated into microcontroller-based systems.
· IoT Devices: Facilitating connectivity and data processing in IoT applications.
· Consumer Electronics: Employed in digital cameras, MP3 players, and gaming consoles.
NC7WZU04P6X's Manufacturer
ON Semiconductor, stylized in lowercase as "onsemi", stands at the forefront of technological innovation, driving advancements that power intelligent and energy-efficient systems worldwide. With a commitment to delivering cutting-edge solutions, ON Semiconductor provides a comprehensive portfolio of semiconductor products, spanning power management, analog, sensor, and connectivity solutions. Leveraging a legacy of over 20 years, the company has solidified its position as a trusted partner for industries ranging from automotive and industrial to consumer electronics and healthcare.
Conclusion
In conclusion, the NC7WZU04P6X from ON Semiconductor stands out as a versatile CMOS inverter offering high performance in a compact SC-70 package. Whether you're designing for consumer electronics, industrial applications, or beyond, understanding its specifications and applications is crucial for optimal integration into your designs.
