ADG734BRUZ-REEL7: Features, Specs & More
In the rapidly evolving world of electronics, choosing the right components can significantly impact the performance and efficiency of your projects. The ADI ADG734BRUZ-REEL7 analog switch stands out as a versatile and reliable option for various applications. In this comprehensive article, we'll delve into the intricacies of the ADG734BRUZ-REEL7, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADG734BRUZ-REEL7's Manufacturer
ADG734BRUZ-REEL7's Overview

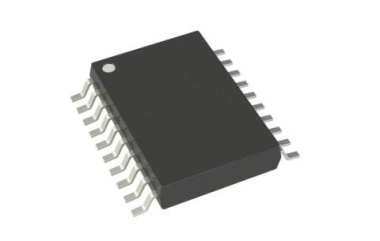

The ADG734BRUZ-REEL7 is a high-performance quad SPDT (Single Pole Double Throw) analog switch. It is designed to handle both single and dual supply voltages, making it suitable for a wide range of applications. Packaged in a compact 20-pin TSSOP, this switch offers excellent electrical performance with minimal power consumption.
Key Features
Let's delve into the standout features that make the ADG734BRUZ-REEL7 a standout in the world of electronics:
· With four SPDT switches in a single chip, this component provides ample flexibility for complex switching tasks.
· It boasts a typical turn-on time of 28ns and a turn-off time of 10ns, ensuring swift and efficient performance.
· Capable of operating at frequencies up to 200MHz at ±2.5V, making it suitable for high-frequency applications.
· The maximum on-resistance is 11Ω at 3V, minimizing signal loss and ensuring efficient signal transmission.
· It supports both single and dual supply voltages, ranging from 1.8V to 5.5V for single supply and ±2.25V to ±2.75V for dual supply.
· With a typical supply current of just 1µA at 5.5V, it is highly power-efficient, ideal for battery-operated devices.
· Operates reliably within a temperature range of -40°C to 85°C, suitable for various environmental conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADG734BRUZ-REEL7:
Type | Parameter |
Type | Analog Switch |
Configuration | Quad SPDT |
Switch Architecture | SPDT |
Number of Channels per Chip | 4 |
Number of Inputs per Chip | 4 |
Number of Outputs per Chip | 8 |
Chip Enable Signals | Yes |
Polarity | Non-Inverting |
Maximum Turn-On Time (ns) | 28(Typ)@3V |
Maximum Turn-Off Time (ns) | 10(Typ)@±2.5V |
Maximum Frequency (25°C) @ Vcc (MHz) | 160(Typ)@5V|200(Typ)@±2.5V |
Input Signal Type | Single |
Output Signal Type | Single |
Minimum Single Supply Voltage (V) | 1.8 |
Typical Single Supply Voltage (V) | 3|5 |
Maximum Single Supply Voltage (V) | 5.5 |
Minimum Dual Supply Voltage (V) | ±2.25 |
Typical Dual Supply Voltage (V) | ±2.5 |
Maximum Dual Supply Voltage (V) | ±2.75 |
Typical Supply Current (mA) | 0.000001@5.5V |
Maximum Supply Current (mA) | 0.001@5.5V@-40C to 85C |
Maximum High Level Output Current (mA) | 30 |
Maximum On Resistance (Ohm) | 11@3V |
Maximum On Resistance Range (Ohm) | 10 to 25 |
Power Supply Type | Single|Dual |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.05(Max) |
Package Width | 4.4 |
Package Length | 6.5 |
PCB changed | 20 |
Standard Package Name | SO |
Supplier Package | TSSOP |
Pin Count | 20 |
Lead Shape | Gull-wing |
* ADG734BRUZ-REEL7's Datasheet
Applications
The ADI ADG734BRUZ-REEL7 is well-suited for a variety of applications, including:
· Communication Systems: Used in signal routing and multiplexing in communication devices.
· Instrumentation: Ideal for precision measurement and testing equipment.
· Consumer Electronics: Enhances performance in devices like smartphones and tablets.
· Automotive: Reliable for use in automotive electronics due to its robust operating temperature range.
· Medical Devices: Ensures precise control and reliability in medical instrumentation.
ADG734BRUZ-REEL7's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI ADG734BRUZ-REEL7 analog switch offers a blend of high performance, versatility, and reliability, making it an excellent choice for various electronic applications. Its robust features and specifications ensure that it can meet the demands of modern electronic designs.
