DFE252012F-1R0M=P2: Features, Specs & More
In this comprehensive article, we'll delve into the intricacies of the DFE252012F-1R0M=P2, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
DFE252012F-1R0M=P2's Manufacturer
DFE252012F-1R0M=P2's Overview

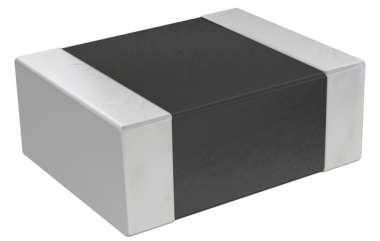

The muRata DFE252012F-1R0M=P2 is a shielded wirewound inductor, designed to handle a wide range of power requirements with efficiency and precision. Its core is crafted from high-quality metal alloy, ensuring robustness and longevity in diverse operating conditions.
Key Features
Let's delve into the standout features that make the DFE252012F-1R0M=P2 a standout in the world of electronics:
· Provides a 1 microhenry (uH) inductance with a 20% tolerance for precise circuit control.
· Tested at 1 MHz frequency for consistent performance across varying conditions.
· Capable of handling up to 3.3 amps of direct current, suitable for demanding applications.
· Safely operates at currents up to 4.7 amps without performance degradation.
· Offers a low resistance of 0.04 Ohm to minimize power loss and heat generation.
· Compact 1008 size (10mm x 8mm), optimizing board space in electronic designs.
· Operates reliably in temperatures ranging from -40°C to 125°C, ensuring versatility in various environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the DFE252012F-1R0M=P2:
Type | Parameter |
Type | Power Chip |
Technology | Wirewound |
Protection Style | Shielded |
Core Material | Metal Alloy |
Inductance (H) | 1u |
Tolerance | 20% |
Inductance Test Frequency (Hz) | 1M |
Maximum DC Current (A) | 3.3 |
Maximum Saturation Current (A) | 4.7 |
Maximum DC Resistance (Ohm) | 0.04 |
Number of Terminals | 2 |
Case Size | 1008 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Product Length (mm) | 2.7 |
Mounting | Surface Mount |
Product Depth (mm) | 2.2 |
Product Height (mm) | 1.2 |
* DFE252012F-1R0M=P2's Datasheet
Applications
This inductor finds application across a wide spectrum of electronic devices and systems, including:
· Power Supplies: Used to filter noise and regulate current flow in power supply circuits.
· DC-DC Converters: Ensures smooth operation and efficient energy transfer in voltage conversion applications.
· Automotive Electronics: Ideal for automotive applications due to its robust construction and wide temperature tolerance.
· Consumer Electronics: Integrated into compact consumer devices where space and performance are critical factors.
DFE252012F-1R0M=P2's Manufacturer
Founded in 1944, Murata Manufacturing Co., Ltd is a Japanese manufacturer of electronic components, based in Nagaokakyo, Kyoto. It produces ceramic passive electronic components, primarily capacitors, and has a majority marketshare worldwide in ceramic filters, high-frequency parts, and sensors.
Conclusion
The muRata DFE252012F-1R0M=P2 Inductor Power Chip stands as a testament to innovation in electronic components. With its compact size, robust specifications, and versatile applications, it remains a preferred choice for engineers and designers aiming to optimize performance and reliability in their electronic designs.
