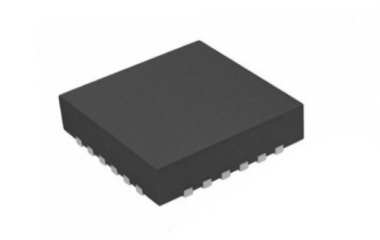

SM806022UMG-TR: Features, Specs & More

In the rapidly evolving world of electronics, precision and reliability are paramount. One component that stands out in ensuring these qualities is the Microchip SM806022UMG-TR. This ultra-low jitter clock generator is a critical component in various high-speed networking and data communication applications. In this comprehensive article, we'll delve into the intricacies of the SM806022UMG-TR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.



Catalog

SM806022UMG-TR's Overview

Key Features

Specifications

Applications

SM806022UMG-TR's Manufacturer

Conclusion



SM806022UMG-TR's Overview

The Microchip SM806022UMG-TR is a state-of-the-art PLL generator that delivers precise frequency generation with exceptional phase jitter performance. This device is engineered to handle demanding applications by providing up to six differential or single-ended outputs, operating at frequencies up to an impressive 875 MHz. With its ability to generate multiple frequencies and its independent programmability, this PLL generator offers unparalleled flexibility for various electronic systems.



Key Features

Let's delve into the standout features that make the SM806022UMG-TR a standout in the world of electronics:

· It generates up to 6 differential or single-ended outputs with frequencies reaching up to 875 MHz.

· The component achieves phase jitter of less than 65 fs at 156.25 MHz (1.875 MHz to 20 MHz) and 78 fs at 156.25 MHz (12 kHz to 20 MHz).

· It features independently programmable output logic options (LVPECL, LVDS, HCSL, LVCMOS) and frequencies, providing customization flexibility.

· There is no need for external crystal oscillator capacitors, which streamlines the design process.

· The component supports crystal inputs ranging from 50 MHz to 156.25 MHz and reference inputs from 50 MHz to 875 MHz.

· It operates on either a 2.5V or 3.3V power supply and supports separate output power supplies for different voltage levels.

· The SM806022UMG-TR performs reliably across an industrial temperature range of -40°C to +85°C.



Specifications

Now, let's take a closer look at the technical specifications that define the capabilities of the SM806022UMG-TR:

Type

Parameter

EU RoHS

Compliant

ECCN (US)

3A991.a.2

Part Status

Active

Automotive

No

PPAP

No

Mounting

Surface Mount

Package Height

0.83

Package Width

4

Package Length

4

PCB changed

24

Standard Package Name

QFN

Supplier Package

VQFN EP

Pin Count

24

 * SM806022UMG-TR's Datasheet



Applications

The versatility of the SM806022UMG-TR makes it suitable for a wide range of high-speed and data-intensive applications:

· 1/10/40/100/400 Gigabit Ethernet (GbE)

· SONET/SDH

· PCI Express Gen 1/2/3/4/5/6

· CPRI/OBSAI – Wireless Base Station

· Fibre Channel

· HDMI/HDTV-4K

· DIMM (DDR2-3-4/AMB)



SM806022UMG-TR's Manufacturer

Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.



Conclusion

The Microchip SM806022UMG-TR is a powerful and reliable ultra-low jitter clock generator that stands out in the electronics industry. Its robust features, compliance with safety standards, and broad application range make it a preferred choice for engineers and designers.
