S912ZVCA96F0MLF: Features, Specs & More
When it comes to automotive microcontrollers, the Freescale Semiconductor (now NXP Semiconductors) S912ZVCA96F0MLF stands out as a powerful and reliable option. In this comprehensive article, we'll delve into the intricacies of the S912ZVCA96F0MLF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
S912ZVCA96F0MLF's Manufacturer
S912ZVCA96F0MLF's Overview

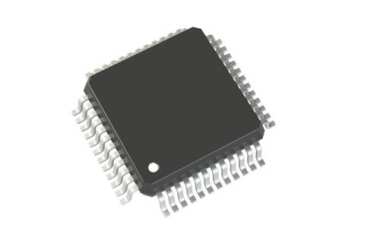

The S912ZVCA96F0MLF is a robust 16-bit microcontroller from Freescale Semiconductor, Inc., now part of NXP Semiconductors. This microcontroller is specifically designed for automotive applications, ensuring reliability and efficiency in demanding environments. With a core operating at 32MHz and 96KB of Flash memory, it offers an optimal balance between performance and storage, making it a go-to choice for modern automotive systems.
Key Features
Let's delve into the standout features that make the S912ZVCA96F0MLF a standout in the world of electronics:
· The S912ZVCA96F0MLF utilizes the advanced S12Z core, providing efficient processing capabilities essential for automotive applications.
· Operating at a maximum clock rate of 32MHz, this microcontroller ensures rapid data processing and execution.
· With 96KB of Flash memory, it offers sufficient space for complex code and data storage.
· It operates at supply voltages up to 40V and can function in temperatures as high as 125°C, ensuring versatility and durability.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the S912ZVCA96F0MLF:
Type | Parameter |
Device Core | S12Z |
Maximum Clock Rate (MHz) | 32 |
Data Bus Width (bit) | 16 |
Number of I/Os | 28 |
Maximum Operating Supply Voltage (V) | 40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.45(Max) |
Package Width | 7 |
Package Length | 7 |
PCB changed | 48 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 48 |
Lead Shape | Gull-wing |
Applications
The S912ZVCA96F0MLF microcontroller is particularly well-suited for a variety of automotive applications due to its robust design and extensive feature set:
· Engine Control Units (ECUs): Its high processing speed and reliability make it ideal for engine control units, ensuring efficient engine performance and compliance with emission standards.
· Transmission Control: The microcontroller's ability to operate at high temperatures and its robust performance parameters make it suitable for transmission control systems.
· Advanced Driver Assistance Systems (ADAS): With its high processing capability and reliable performance, it supports various ADAS functionalities, enhancing vehicle safety and driver comfort.
S912ZVCA96F0MLF's Manufacturer
Freescale Semiconductor, Inc., now seamlessly integrated into NXP Semiconductors, stands as a pioneering force in the semiconductor industry. Renowned for its cutting-edge technologies, Freescale Semiconductor played a pivotal role in shaping the landscape of embedded solutions and microcontrollers. With a commitment to innovation and a rich legacy, the company has consistently delivered high-performance semiconductor solutions, catering to a diverse range of industries. Following its merger with NXP Semiconductors, a global semiconductor powerhouse, the legacy of Freescale continues to thrive, fostering advancements in automotive, industrial, and IoT applications.
Conclusion
The Freescale S912ZVCA96F0MLF microcontroller is a high-performance, reliable solution for automotive electronics. Its robust features, coupled with its adherence to stringent automotive standards, make it an ideal choice for various automotive applications.
