LM89-1CIMM/NOPB: Features, Specs & More
In the ever-evolving world of electronics, precision and reliability are paramount. When it comes to temperature sensing, the TI LM89-1CIMM/NOPB stands out as a robust solution for various applications. In this comprehensive article, we'll delve into the intricacies of the LM89-1CIMM/NOPB, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LM89-1CIMM/NOPB's Manufacturer
LM89-1CIMM/NOPB's Overview
The TI LM89-1CIMM/NOPB is a high-performance temperature sensor designed for digital serial communication. As a part of Texas Instruments' reputable lineup, this sensor offers a reliable way to measure temperature with high accuracy and efficiency. With its digital output and 2-wire SMbus interface, it's an excellent choice for applications requiring precise thermal monitoring and control.
Key Features
Let's delve into the standout features that make the LM89-1CIMM/NOPB a standout in the world of electronics:
· The LM89-1CIMM/NOPB offers a digital serial output with a resolution of 10 bits plus sign.
· With an accuracy of ±1°C or ±3°C (maximum), this sensor delivers reliable performance in various conditions.
· The sensor utilizes a 2-wire serial interface compliant with the System Management Bus (SMbus) protocol.

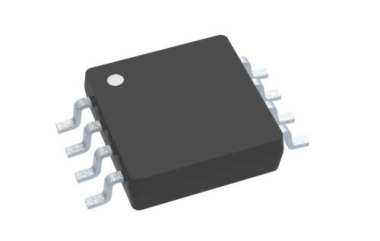

· Encased in an 8-pin VSSOP (Very Small Scale Outline Package), the LM89-1CIMM/NOPB is designed for minimal space consumption on PCBs.
· Its small dimensions—3.1 mm x 3.1 mm x 0.95 mm—make it perfect for compact electronic devices.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LM89-1CIMM/NOPB:
Type | Parameter |
Module/IC Classification | IC |
Resolution (bit) | 10+Sign |
Accuracy | ±1°C/±3°C(Max) |
Interface Type | Serial (2-Wire, SMbus) |
Output Type | Digital |
Minimum Operating Supply Voltage (V) | 3 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Supply Current (uA) | 800(Typ) |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.95(Max) |
Package Width | 3.1(Max) |
Package Length | 3.1(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | VSSOP |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The TI LM89-1CIMM/NOPB is versatile and can be employed in numerous applications. Here are a few examples:
· Consumer Electronics: Used in devices requiring precise temperature monitoring, such as laptops, smartphones, and home appliances.
· Industrial Automation: Ideal for temperature sensing in machinery and control systems to ensure safe and efficient operation.
· Medical Devices: Suitable for monitoring temperature in medical equipment, where accuracy and reliability are crucial.
· Automotive: Can be integrated into automotive systems for engine temperature monitoring and climate control.
LM89-1CIMM/NOPB's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI LM89-1CIMM/NOPB combines high accuracy, low power consumption, and a compact form factor, making it an ideal choice for various electronic applications. Its digital output and SMbus interface simplify integration, while its broad temperature range ensures it can handle diverse environmental conditions.
