MC33FS6502LAE: Features, Specs & More
As the automotive industry continues to evolve, the demand for advanced electronic components that enhance vehicle performance and safety is on the rise. Among these essential components is the MC33FS6502LAE from Freescale Semiconductor (now part of NXP Semiconductors). In this comprehensive article, we'll delve into the intricacies of the MC33FS6502LAE, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MC33FS6502LAE's Overview

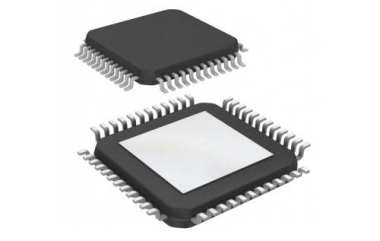

The Freescale MC33FS6502LAE is an advanced System Basis Chip (SBC) developed by Freescale Semiconductor, now part of NXP Semiconductors. It is specifically engineered to provide essential functions such as voltage regulation and power management in automotive systems. This chip is housed in a compact 48-pin QFP package, making it suitable for space-constrained applications while offering high performance.
Key Features
Let's delve into the standout features that make the MC33FS6502LAE a standout in the world of electronics:
· This feature enables accurate monitoring and measurement of battery voltage, enhancing the reliability of power management systems.
· The MC33FS6502LAE supports two topologies—non-inverting buck-boost and standard buck—providing flexibility in power regulation.
· It can supply MCU cores from 1.0 V to 5.0 V with options for SMPS (0.8 A, 1.5 A, or 2.2 A) or LDO (0.5 A), accommodating various power needs.
· The chip includes dedicated regulators for auxiliary functions, sensor supply, and MCU Analog/Digital reference voltage, available in 5.0 V or 3.3 V.
· In low-power mode, a 3.3 V keep-alive memory supply ensures data retention and operational continuity.
· With a resolution of 1.0 s, this timer can count up to 6 months, providing reliable time tracking for extended periods.
· The chip supports various wake-up sources in low-power mode, including CAN, LIN, I/Os, and LDT, ensuring responsive system activation.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MC33FS6502LAE:
Type | Parameter |
EU RoHS | Compliant |
ECCN (US) | EAR99 |
Part Status | Active |
HTS | 8542.39.00.01 |
SVHC | Yes |
Automotive | Yes |
PPAP | Yes |
Mounting | Surface Mount |
Package Height | 1.45(Max) |
Package Width | 7 |
Package Length | 7 |
PCB changed | 48 |
Standard Package Name | QFP |
Supplier Package | HLQFP EP |
Pin Count | 48 |
Lead Shape | Gull-wing |
Applications
The MC33FS6502LAE is designed to cater to various automotive applications, providing versatile solutions for modern vehicles:
· Drive Train Electrification: It supports battery management systems (BMS), hybrid electric vehicles (HEV), inverters, DC-DC converters, and alternator starters.
· Drive Train - Chassis and Safety: The chip is used in active suspension systems, steering mechanisms, and safety domain gateways, contributing to improved vehicle handling and safety.
· Power Train: It plays a role in engine management systems (EMS), transmission control units (TCU), and gearboxes, enhancing overall powertrain efficiency.
· ADAS: The MC33FS6502LAE supports advanced driver-assistance systems (ADAS), including lane departure warning (LDW), radar systems, and sensor fusion safety areas, providing crucial safety features.
MC33FS6502LAE's Manufacturer
Freescale Semiconductor, Inc., now seamlessly integrated into NXP Semiconductors, stands as a pioneering force in the semiconductor industry. Renowned for its cutting-edge technologies, Freescale Semiconductor played a pivotal role in shaping the landscape of embedded solutions and microcontrollers. With a commitment to innovation and a rich legacy, the company has consistently delivered high-performance semiconductor solutions, catering to a diverse range of industries. Following its merger with NXP Semiconductors, a global semiconductor powerhouse, the legacy of Freescale continues to thrive, fostering advancements in automotive, industrial, and IoT applications.
Conclusion
The Freescale MC33FS6502LAE is a high-performance system basis chip that offers extensive flexibility and reliability for automotive electronics. With its advanced power management capabilities, linear voltage regulators, and diverse applications, it is an essential component for modern automotive systems.
