LFXTAL057623REEL: Features, Specs & More
In the world of electronic components, crystals play a critical role in ensuring accurate and stable frequency generation. The IQD Frequency Products LFXTAL057623REEL is a prime example of a high-performance crystal oscillator designed to meet the stringent requirements of modern applications. In this comprehensive article, we'll delve into the intricacies of the LFXTAL057623REEL, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LFXTAL057623REEL's Manufacturer
LFXTAL057623REEL's Overview

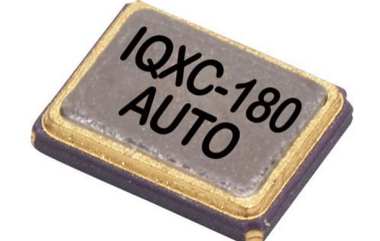

The LFXTAL057623REEL is a 24MHz crystal oscillator produced by IQD Frequency Products. This device is specifically designed to deliver precise frequency stability and tolerance, making it a reliable choice for various electronic applications. With its surface-mount design and automotive-grade specifications, it is well-suited for use in automotive and other high-demand environments.
Key Features
Let's delve into the standout features that make the LFXTAL057623REEL a standout in the world of electronics:
· Operating at a standard frequency of 24 MHz, this crystal oscillator ensures precise timing and synchronization.
· With a frequency stability of ±50 ppm, the LFXTAL057623REEL maintains its accuracy over varying environmental conditions.
· The oscillator meets Automotive AEC-Q200 standards, ensuring it can withstand the rigorous demands of automotive environments, including extreme temperatures and vibrations.
· The LFXTAL057623REEL comes in a 4-pin surface-mount package (SMD), facilitating easy integration into modern PCB designs and reducing assembly costs.
· It operates efficiently within a temperature range of -40°C to 85°C, providing reliable performance in diverse environmental conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LFXTAL057623REEL:
Type | Parameter |
Type | Crystal |
Standard Frequency (MHz) | 24 |
Frequency Tolerance (ppm) | ±30 |
Frequency Stability (ppm) | ±50 |
Frequency Aging (ppm/Year) | ±5 |
Load Capacitance (pF) | 8 |
Series Resistance (Ohm) | 50 |
Mode of Oscillation | Fundamental |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.8(Max) |
Package Width | 2.5 |
Package Length | 3.2 |
PCB changed | 4 |
Pin Count | 4 |
* LFXTAL057623REEL's Datasheet
Applications
The LFXTAL057623REEL crystal is versatile and can be used in a wide range of applications, including:
· Automotive Electronics: Its automotive-grade design makes it ideal for use in vehicle electronics such as engine control units (ECUs), infotainment systems, and safety systems.
· Industrial Equipment: The wide temperature range and reliable performance make it suitable for various industrial applications, including automation and control systems.
· Consumer Electronics: It is also used in consumer electronics where precise frequency generation is required, such as in communication devices and portable gadgets.
LFXTAL057623REEL's Manufacturer
IQD has been a recognised market leader in the frequency control market since 1973 and is part of the Würth Elektronik eiSos group, one of the leading European suppliers of passive components. With active customers in over 80 countries, IQD offers one of the most comprehensive frequency product ranges available, from low cost commercial grade product to that used in high reliability industrial and automotive applications including quartz crystals, clock oscillators, automotive crystals & oscillators to AEC-Q200, fast make oscillators, VCXOs, TCXOs & VCTCXOs, OCXOs, disciplined OCXOs, rubidium oscillators.
Conclusion
The IQD LFXTAL057623REEL crystal oscillator embodies high precision and automotive-grade reliability, making it a valuable component in numerous applications. Its combination of accurate frequency output, broad temperature range, and surface-mount design ensures it meets the diverse needs of modern electronics.
