LDC1314RGHT: Features, Specs & More
In the ever-evolving world of electronics, precision and efficiency are paramount. The Texas Instruments (TI) LDC1314RGHT stands out as a powerful tool in the realm of inductance-to-digital conversion. In this comprehensive article, we'll delve into the intricacies of the LDC1314RGHT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LDC1314RGHT's Overview

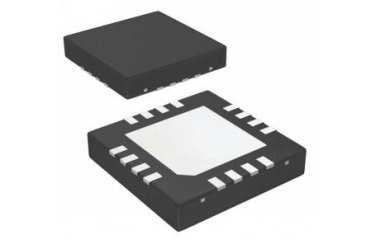

The TI LDC1314RGHT is an advanced Inductance to Digital Converter (LDC) designed to transform inductance measurements into digital data. Operating at a resolution of 12 bits and a conversion rate of 13.3 kilohertz (ksps), this component is engineered to provide accurate and reliable performance across various applications. It is housed in a 16-pin WQFN EP (Quad Flat No-Lead, Exposed Pad) package, making it suitable for surface mounting on printed circuit boards (PCBs).
Key Features
Let's delve into the standout features that make the LDC1314RGHT a standout in the world of electronics:
· With a resolution of 12 bits, the LDC1314RGHT provides detailed and precise measurements, essential for applications requiring fine accuracy.
· Operating at a conversion rate of 13.3 ksps (kilosamples per second), this device ensures quick and efficient processing of inductance measurements.
· The LDC1314RGHT is capable of operating in extreme conditions, with a temperature range from -40°C to 125°C, making it suitable for harsh environments.
· Housed in a 16-pin WQFN (Quad Flat No-Lead) package, the device features a compact footprint with dimensions of 4.1 mm x 4.1 mm and a maximum height of 0.75 mm, ideal for space-constrained applications.
· The LDC1314RGHT is designed for surface mounting, facilitating easy integration into various electronic designs and improving manufacturing efficiency.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LDC1314RGHT:
Type | Parameter |
HTS | LDC1314RGHT |
SVHC | Yes |
Automotive | No |
PPAP | No |
Product Category | Inductance to Digital Converter |
Resolution | 12bit |
Conversion Rate (ksps) | 13.3 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.75(Max) |
Package Width | 4.1(Max) |
Package Length | 4.1(Max) |
PCB changed | 16 |
Standard Package Name | QFN |
Supplier Package | WQFN EP |
Pin Count | 16 |
Lead Shape | No Lead |
Applications
The TI LDC1314RGHT is versatile and can be used in a range of applications, including:
· Knobs and Buttons: Ideal for consumer electronics, appliances, and automotive applications, where precise control and feedback are essential.
· Encoders: Used in linear and rotational encoders to provide accurate position and movement sensing.
· Keypads and Slider Buttons: Commonly employed in manufacturing, home electronics, and appliances for user interface control.
· Metal Detection: Effective in industrial and automotive sectors for detecting metal objects or changes in metal presence.
· POS and EPOS Systems: Enhances the performance of point-of-sale (POS) and electronic point-of-sale (EPOS) systems.
· Flow Meters: Applied in consumer and appliance flow measurement systems for accurate readings.
LDC1314RGHT's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI LDC1314RGHT Inductance to Digital Converter is a robust, high-resolution component that excels in accuracy and versatility. Its wide temperature range, compact packaging, and diverse applications make it an excellent choice for numerous electronic designs.
