ADG708BRUZ-REEL7: Features, Specs & More
In today's rapidly evolving electronics landscape, analog multiplexers play a crucial role in simplifying complex circuits by channeling multiple input signals into a single output line. One such advanced solution is the ADI ADG708BRUZ-REEL7, a single 8:1 analog multiplexer. In this comprehensive article, we'll delve into the intricacies of the ADG708BRUZ-REEL7, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADG708BRUZ-REEL7's Manufacturer
ADG708BRUZ-REEL7's Overview

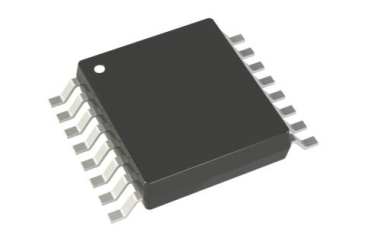

The ADI ADG708BRUZ-REEL7 is a high-performance analog multiplexer designed by Analog Devices, Inc. (ADI). It features a single 8:1 configuration, allowing it to route one of eight input signals to a single output, significantly optimizing signal routing in electronic systems. The device is packaged in a 16-pin TSSOP (Thin Shrink Small Outline Package), making it suitable for surface mount applications where space and performance are critical considerations.
Key Features
Let's delve into the standout features that make the ADG708BRUZ-REEL7 a standout in the world of electronics:
· Supports eight input channels to one output, making it ideal for applications requiring multiple signal routing options.
· The multiplexer features a low on-resistance of 11 ohms at 3V, reducing signal loss and ensuring high-quality signal transmission.
· With a maximum turn-on time of 18 ns and a turn-off time of 8 ns at 3V, the ADG708BRUZ-REEL7 is suitable for high-speed applications.
· The device supports a wide range of single supply (1.8V to 5.5V) and dual supply (±2.25V to ±2.75V) voltages, offering flexibility in various power environments.
· Featuring a typical supply current of 1µA at 5.5V, the multiplexer is energy efficient, making it suitable for battery-powered applications.
· Capable of operating up to 55 MHz at 5V, this multiplexer is well-suited for high-frequency applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADG708BRUZ-REEL7:
Type | Parameter |
Type | Analog Multiplexer |
Configuration | Single 8:1 |
Multiplexer Architecture | 8:1 |
Number of Channels per Chip | 1 |
Number of Inputs per Chip | 8 |
Number of Outputs per Chip | 1 |
Chip Enable Signals | Yes |
Maximum Propagation Delay Bus to Bus (ns) | 14(Typ)@5V|14(Typ)@±2.5V|18(Typ)@3V |
Maximum Turn-On Time (ns) | 18(Typ)@3V |
Maximum Turn-Off Time (ns) | 8(Typ)@3V |
Maximum Frequency (25°C) @ Vcc (MHz) | 55(Typ)@5V |
Input Signal Type | Single |
Output Signal Type | Single |
Minimum Single Supply Voltage (V) | 1.8 |
Typical Single Supply Voltage (V) | 3|5 |
Maximum Single Supply Voltage (V) | 5.5 |
Minimum Dual Supply Voltage (V) | ±2.25 |
Typical Dual Supply Voltage (V) | ±2.5 |
Maximum Dual Supply Voltage (V) | ±2.75 |
Typical Supply Current (mA) | 0.000001@5.5V |
Maximum Supply Current (mA) | 0.001@5.5V@-40C to 85C |
Maximum High Level Output Current (mA) | 30 |
Maximum On Resistance (Ohm) | 11@3V |
Maximum On Resistance Range (Ohm) | 10 to 25 |
Propagation Delay Test Condition (pF) | 35 |
Power Supply Type | Dual|Single |
Maximum Power Dissipation (mW) | 432 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
* ADG708BRUZ-REEL7's Datasheet
Applications
The ADI ADG708BRUZ-REEL7 is versatile and finds its application across a wide range of electronic systems:
· Data Acquisition Systems: Ideal for systems that require multiple signal measurements, enabling seamless switching between various input signals.
· Communication Systems: Efficiently routes signals in communication devices, enhancing data transmission integrity and minimizing signal loss.
· Relay Replacement: Acts as a digital alternative to mechanical relays, providing faster switching times and higher reliability.
· Audio and Video Switching: Facilitates the routing of different audio or video signals in entertainment and professional AV equipment.
· Battery-Powered Systems: Due to its low power consumption, the multiplexer is perfect for portable, battery-operated devices where energy efficiency is paramount.
ADG708BRUZ-REEL7's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI ADG708BRUZ-REEL7 analog multiplexer offers a robust solution for engineers and designers looking to optimize signal routing in their electronic systems. With its fast switching times, low power consumption, and high precision, this multiplexer is well-suited for a wide array of applications, from data acquisition to audio and video switching.
