LT3502EDC#TRPBF: Features, Specs & More
In the world of electronic components, choosing the right DC-DC converter can significantly impact performance and efficiency. Among the standout options is the ADI LT3502EDC#TRPBF, a versatile step-down regulator designed to deliver precise voltage regulation and reliability across various applications. In this comprehensive article, we'll delve into the intricacies of the LT3502EDC#TRPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LT3502EDC#TRPBF's Manufacturer
LT3502EDC#TRPBF's Overview
The ADI LT3502EDC#TRPBF is a step-down DC-DC converter, also known as a buck regulator, which efficiently reduces a higher input voltage to a lower output voltage. This adjustable output device operates within a wide input voltage range of 3V to 40V and provides a stable output voltage between 0.8V and 36V. Its compact design and high switching frequency make it ideal for various applications requiring reliable power management.
Key Features
Let's delve into the standout features that make the LT3502EDC#TRPBF a standout in the world of electronics:
· The LT3502EDC#TRPBF supports input voltages from 3V to 40V, making it suitable for a broad spectrum of power sources.
· With an output voltage range of 0.8V to 36V, this converter allows for flexible and precise voltage regulation tailored to specific application needs.
· Operating at a switching frequency of 1300kHz, the LT3502EDC#TRPBF delivers efficient power conversion, minimizing energy loss and heat generation.

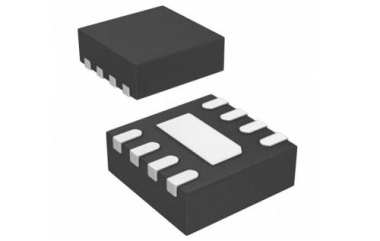

· Housed in an 8-pin DFN package with dimensions of 2mm x 2mm, this regulator is designed for surface mount applications, offering a compact footprint that saves PCB space.
· The device operates efficiently across an extended temperature range of -40°C to 125°C, ensuring reliable performance in harsh environments.
· With a typical quiescent current of 1500μA, the LT3502EDC#TRPBF is energy-efficient, contributing to longer battery life in portable devices.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LT3502EDC#TRPBF:
Type | Parameter |
Type | Step Down |
Output Type | Adjustable |
Switching Frequency (kHz) | 1300 |
Switching Regulator | Yes |
Number of Outputs | 1 |
Output Voltage (V) | 0.8 to 36 |
Maximum Output Current (A) | 0.5 |
Minimum Input Voltage (V) | 3 |
Maximum Input Voltage (V) | 40 |
Operating Supply Voltage (V) | 3 to 40 |
Typical Quiescent Current (uA) | 1500 |
Line Regulation | 0.005%/V(Typ) |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Extended |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.75(Max) |
Package Width | 2 |
Package Length | 2 |
PCB changed | 8 |
Standard Package Name | DFN |
Supplier Package | DFN EP |
Pin Count | 8 |
Lead Shape | No Lead |
Applications
The ADI LT3502EDC#TRPBF is versatile and can be used in various applications, including:
· Automotive Systems: Ensures stable power regulation in automotive electronics.
· Battery-Powered Equipment: Ideal for devices that require efficient power management to extend battery life.
· Wall Transformer Regulation: Regulates voltage from wall adapters to provide consistent power.
· Distributed Supply Regulation: Provides reliable power in distributed systems where voltage regulation is crucial.
LT3502EDC#TRPBF's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI LT3502EDC#TRPBF step-down DC-DC converter stands out as a versatile and reliable component in the electronics industry. Its wide input voltage range, adjustable output, high efficiency, and compact design make it a valuable choice for various applications, from automotive systems to battery-powered devices.
