PIC32MZ1024EFE100-I/PT: Features, Specs & More
In the rapidly evolving world of electronics, the need for powerful, secure, and reliable microcontrollers is more critical than ever. The Microchip PIC32MZ1024EFE100-I/PT stands out as a top-tier choice for developers and engineers seeking a 32-bit microcontroller that offers robust performance and comprehensive features. In this comprehensive article, we'll delve into the intricacies of the PIC32MZ1024EFE100-I/PT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PIC32MZ1024EFE100-I/PT's Overview
PIC32MZ1024EFE100-I/PT's Manufacturer
PIC32MZ1024EFE100-I/PT's Overview

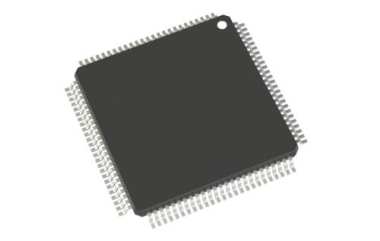

The Microchip PIC32MZ1024EFE100-I/PT is a high-performance 32-bit microcontroller designed to meet the demands of advanced and secure applications. It is part of the PIC32 family, known for its RISC (Reduced Instruction Set Computing) architecture and impressive performance metrics. With 1MB of Flash memory and 256KB of RAM, this MCU is built to handle complex tasks efficiently while ensuring long-term reliability.
Key Features
Let's delve into the standout features that make the PIC32MZ1024EFE100-I/PT a standout in the world of electronics:
· The PIC32MZ1024EFE100-I/PT features a 200 MHz core clock, which allows it to execute instructions swiftly, making it suitable for real-time processing needs.
· With 1MB of flash memory and 256KB of RAM, this microcontroller offers ample space for program storage and data handling.
· Equipped with a 128-bit AES encryption key and support for 192-bit and 256-bit AES keys, this MCU ensures secure data handling.
· The microcontroller includes multiple I/O interfaces including Ethernet, USB, SPI, I2C, and UART, facilitating versatile connectivity options.
· Operating within a temperature range of -40°C to 85°C and a voltage range of 2.1V to 3.6V, the PIC32MZ1024EFE100-I/PT is designed for reliable performance in harsh conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PIC32MZ1024EFE100-I/PT:
Type | Parameter |
Family Name | PIC32 |
Instruction Set Architecture | RISC |
Device Core | PIC |
Core Architecture | PIC |
Maximum CPU Frequency (MHz) | 200 |
Maximum Clock Rate (MHz) | 200 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 1MB |
RAM Size | 256KB |
Minimum Endurance (Cycles) | 20000 |
Data Retention (Year) | 20 |
Maximum Expanded Memory Size | 4GB |
Programmability | Yes |
Key Size | 128bit@AES/192bit@AES/256bit@AES |
Number of I/Os | 78 |
No. of Timers | 9 |
PWM | 1 |
Number of ADCs | Single |
ADC Channels | 40 |
ADC Resolution (bit) | 12 |
Interface Type | Ethernet/I2C/I2S/SPI/UART/USB |
UART | 6 |
USB | 1 |
SPI | 6 |
I2C | 5 |
I2S | 6 |
CAN | 0 |
Ethernet | 1 |
Watchdog | 1 |
Analog Comparators | 2 |
Parallel Master Port | Yes |
Real Time Clock | Yes |
Minimum Operating Supply Voltage (V) | 2.1 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1 |
Package Width | 12 |
Package Length | 12 |
PCB changed | 100 |
Standard Package Name | QFP |
Supplier Package | TQFP |
Pin Count | 100 |
Lead Shape | Gull-wing |
* PIC32MZ1024EFE100-I/PT's Datasheet
Applications
The PIC32MZ1024EFE100-I/PT is versatile and suitable for a wide range of applications including:
· Industrial Automation: Its robust performance and wide operating temperature range make it ideal for industrial control systems.
· Networking Equipment: With its Ethernet interface and high-speed capabilities, it is perfect for networking applications.
· Consumer Electronics: The MCU's advanced features and secure memory options are well-suited for high-end consumer devices.
· Medical Devices: Reliable operation and precise ADC capabilities enhance its use in medical monitoring and diagnostic equipment.
PIC32MZ1024EFE100-I/PT's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The Microchip PIC32MZ1024EFE100-I/PT microcontroller is a powerful and secure solution for demanding applications. With its high clock speed, substantial memory, and extensive I/O capabilities, it provides a versatile platform for developing sophisticated electronic systems. Its robust security features and broad temperature range further enhance its suitability for industrial and consumer electronics alike.
