TMP112AIDRLT: Features, Specs & More
In the ever-evolving world of electronics, precision and reliability are paramount. The TI TMP112AIDRLT temperature sensor stands out as a premier solution for various applications, from building automation to personal electronics. In this comprehensive article, we'll delve into the intricacies of the TMP112AIDRLT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TMP112AIDRLT's Overview

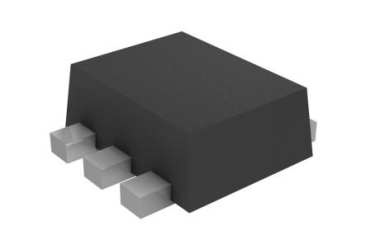

The TI TMP112AIDRLT is a digital temperature sensor that uses a 2-wire I2C or SMBus interface for communication. It operates with a resolution of 12 bits, providing precise temperature readings suitable for various applications. This sensor is housed in a compact 6-pin SOT-563 package, making it ideal for space-constrained designs.
Key Features
Let's delve into the standout features that make the TMP112AIDRLT a standout in the world of electronics:
· The TMP112AIDRLT offers a 12-bit resolution, ensuring accurate temperature measurements.
· With an accuracy of ±0.5°C, this sensor delivers reliable and consistent performance across its operating temperature range.
· Operating at a typical supply voltage of 3.3V and a maximum current of just 10µA, the TMP112AIDRLT is designed for low power consumption.
· The sensor functions effectively in temperatures ranging from -40°C to 125°C, making it suitable for diverse environmental conditions.
· The SOT-563 package, with its minimal height of 0.55mm and compact dimensions, allows for surface mounting in small spaces.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TMP112AIDRLT:
Type | Parameter |
Module/IC Classification | IC |
Resolution (bit) | 12 |
Accuracy | ±0.5°C |
Interface Type | Serial (2-Wire, I2C, SMBus) |
Output Type | Digital |
Minimum Operating Supply Voltage (V) | 1.4 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Supply Current (uA) | 10 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.55(Max) |
Package Width | 1.3(Max) |
Package Length | 1.7(Max) |
PCB changed | 6 |
Standard Package Name | SOT |
Supplier Package | SOT-563 |
Pin Count | 6 |
Lead Shape | Flat |
Applications
The TMP112AIDRLT is highly versatile and finds applications across various domains:
· Building Automation: Ideal for occupancy detection, video doorbells, and wireless environmental sensors for HVAC systems.
· Factory Automation & Control: Used in machine vision cameras, industrial PCs, and PLC controllers for enhanced operational efficiency.
· Cold Chain Management: Ensures precise temperature control for sensitive goods during storage and transport.
· Data Center & Enterprise Computing: Utilized in SSDs, rack server motherboards, and other critical computing components.
· Personal Electronics: Perfect for PCs, tablets, digital cameras, augmented reality glasses, and smart speakers, providing accurate temperature monitoring in consumer devices.
TMP112AIDRLT's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI TMP112AIDRLT temperature sensor is a robust solution designed for precise temperature measurement across a wide range of applications. Its combination of high resolution, accuracy, and low power consumption makes it an excellent choice for both industrial and consumer electronics.
