ADS131M06IPBS: Features, Specs & More
In the ever-evolving world of electronics, precision and reliability are crucial. The TI ADS131M06IPBS stands out as a top choice for applications demanding high accuracy and efficiency. This advanced 6-channel, 24-bit delta-sigma analog-to-digital converter (ADC) is designed to meet the rigorous requirements of modern electronic systems, from electricity meters to battery management systems. In this comprehensive article, we'll delve into the intricacies of the ADS131M06IPBS, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

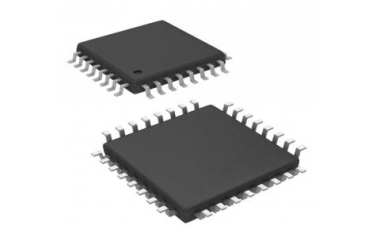

ADS131M06IPBS's Overview
The TI ADS131M06IPBS is a state-of-the-art delta-sigma ADC renowned for its exceptional precision and versatility. Designed for general-purpose applications, this ADC offers a resolution of 24 bits, which translates to incredibly accurate digital representations of analog signals. With a sampling rate of 32ksps (thousand samples per second), it ensures timely data acquisition, making it ideal for high-speed and high-precision tasks.
Key Features
Let's delve into the standout features that make the ADS131M06IPBS a standout in the world of electronics:
· With a resolution of 24 bits, the ADS131M06IPBS delivers outstanding accuracy, ensuring that even the smallest changes in the input signal are detected.
· The device supports six simultaneous inputs, enabling the measurement of multiple signals with a single ADC.
· This rate allows for high-speed data acquisition, crucial for real-time processing in various applications.
· The ADC communicates via SPI, a widely used interface that simplifies integration with microcontrollers and other digital systems.
· It supports differential input signals, enhancing its capability to handle noisy environments and provide accurate readings.
· Flexibility in voltage reference sources ensures adaptability to different system requirements.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADS131M06IPBS:
Type | Parameter |
Converter Type | General Purpose |
Architecture | Delta-Sigma |
Resolution | 24bit |
Number of ADCs | 6 |
Number of Input Channels | 6 |
Sampling Rate | 32ksps |
Digital Interface Type | Serial (SPI) |
Input Type | Voltage |
Input Signal Type | Differential |
Voltage Reference | Internal|External |
Polarity of Input Voltage | Bipolar |
Voltage Supply Source | Single |
Input Voltage | ±1.2V |
Typical Power Dissipation (mW) | 16.7 |
Integral Nonlinearity Error | 7.5ppm of FSR(Typ) |
Full Scale Error | ±0.3%FSR(Typ) |
Signal to Noise Ratio | 101dB(Typ) |
Sample and Hold | Yes |
Single-Ended Input | No |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tray |
Supplier Temperature Grade | Industrial |
Mounting | Surface Mount |
Package Height | 1.05(Max) |
Package Width | 5.05(Max) |
Package Length | 5.05(Max) |
PCB changed | 32 |
Standard Package Name | QFP |
Supplier Package | TQFP |
Pin Count | 32 |
Applications
The TI ADS131M06IPBS is a versatile ADC used in various applications, including:
· Electricity Meters: For accurate measurement and monitoring of energy consumption in both commercial and residential settings.
· Circuit Breakers: Ensures precise detection and response in protective systems.
· Protection Relays: Enhances reliability and safety in electrical circuits.
· Power Quality Meters: Measures and analyzes power quality parameters to ensure optimal performance.
· Battery Test Equipment: Assesses battery performance and health.
· Battery Management Systems: Manages and monitors battery charge, discharge, and overall system health.
ADS131M06IPBS's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI ADS131M06IPBS is an exemplary ADC that combines high resolution, fast sampling rates, and versatile features. Whether used in power quality meters, battery management systems, or other precision applications, this ADC delivers exceptional performance and reliability.
