ADCMP356YKSZ-REEL7: Features, Specs & More
In the rapidly evolving world of electronics, precision and reliability are paramount. Enter the ADI ADCMP356YKSZ-REEL7, a general-purpose comparator designed to meet these exacting standards. In this comprehensive article, we'll delve into the intricacies of the ADCMP356YKSZ-REEL7, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADCMP356YKSZ-REEL7's Manufacturer
ADCMP356YKSZ-REEL7's Overview
The ADCMP356YKSZ-REEL7 is a single-channel comparator from Analog Devices, featuring a 5.5V maximum operating supply voltage and a push-pull output type. Designed for surface-mount applications, this device combines high precision with a small footprint, making it suitable for space-constrained environments.
Key Features
Let's delve into the standout features that make the ADCMP356YKSZ-REEL7 a standout in the world of electronics:

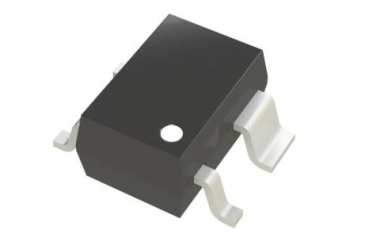

· The comparator comes in a small SC-70 package, making it ideal for space-constrained applications.
· It operates effectively within a voltage range of 2.25V to 5.5V, accommodating a variety of power supply configurations.
· With a maximum supply current of just 15µA, this comparator is highly efficient, contributing to longer battery life in portable devices.
· It functions reliably across a broad temperature range, from -40°C to 125°C, ensuring performance in diverse environments.
· This feature allows for faster switching and cleaner signal transitions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADCMP356YKSZ-REEL7:
Type | Parameter |
Manufacturer Type | General Purpose Comparator |
Number of Channels per Chip | 1 |
Rail to Rail | No |
Output Type | Push-Pull |
Maximum Operating Supply Voltage (V) | 5.5 |
Minimum Single Supply Voltage (V) | 2.25 |
Maximum Single Supply Voltage (V) | 5.5 |
Maximum Input Bias Current (uA) | 170(Typ)@5.5V@-40C to 125C |
Maximum Supply Current (mA) | 0.015@5.5V@-40C to 125C |
Power Supply Type | Single |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1(Max) |
Package Width | 1.35(Max) |
Package Length | 2.2(Max) |
PCB changed | 4 |
Standard Package Name | SOT |
Supplier Package | SC-70 |
Pin Count | 4 |
* ADCMP356YKSZ-REEL7's Datasheet
Applications
The ADCMP356YKSZ-REEL7 is versatile, finding applications across various sectors:
· Voltage Detectors: Accurate voltage measurement for system monitoring.
· Microprocessor Systems: Ensuring stable operation and signal integrity.
· Computers: Enhancing performance and reliability in computing systems.
· Battery Monitors: Extending battery life and efficiency in portable devices.
· Intelligent Instruments: Providing precise signal processing for advanced instruments.
· Portable Equipment: Ideal for battery-powered devices requiring minimal power consumption.
ADCMP356YKSZ-REEL7's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI ADCMP356YKSZ-REEL7 comparator is a robust, efficient, and compact solution for various electronic applications. Its combination of precise performance, low power consumption, and wide operational temperature range makes it a valuable asset in both consumer and industrial electronics.
