DRV103H/2K5: Features, Specs & More
In the fast-evolving electronics landscape, efficient and reliable component choices are crucial. The TI DRV103H/2K5 low-side driver stands out as an excellent solution for various applications, providing robust performance and versatility. In this comprehensive article, we'll delve into the intricacies of the DRV103H/2K5, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
DRV103H/2K5's Overview

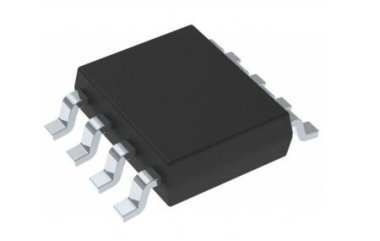

The TI DRV103H/2K5 is a low side driver that delivers up to 3A of output current, making it ideal for various electromechanical applications. With its compact 8-pin HSOIC EP packaging, it's engineered to fit seamlessly into tight spaces without compromising performance. This driver operates effectively across a broad range of voltages and temperatures, ensuring it meets the diverse needs of industrial and commercial applications.
Key Features
Let's delve into the standout features that make the DRV103H/2K5 a standout in the world of electronics:
· Capable of delivering a peak output current of 3A, making it suitable for heavy-duty applications.
· Operates between 8V and 32V, providing flexibility for different power supply configurations.
· Built-in protection features ensure the device operates safely, preventing damage under high-load conditions.
· With a maximum rise and fall time of 2000 ns, the DRV103H/2K5 ensures efficient switching, which is crucial for dynamic applications.
· Compatible with TTL logic levels, making it easy to integrate with microcontrollers and other digital devices.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the DRV103H/2K5:
Type | Parameter |
Driver Type | Low Side |
Number of Drivers | 1 |
Process Technology | DMOS |
Number of Outputs | 1 |
Maximum Rise Time (ns) | 2000 |
Maximum Fall Time (ns) | 2000 |
Maximum Operating Frequency (kHz) | 100 |
Maximum Propagation Delay Time (ns) | 1000(Typ) |
Input Logic Compatibility | TTL |
Minimum Operating Supply Voltage (V) | 8 |
Typical Operating Supply Voltage (V) | 24 |
Maximum Operating Supply Voltage (V) | 32 |
Peak Output Current (A) | 3 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Special Features | Current Limit|Thermal Shutdown Protection |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.55(Max) |
Package Width | 4(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | HSOIC EP |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The TI DRV103H/2K5 is widely used across various industries due to its versatility and reliability. Key applications include:
· Electromechanical Drivers: Ideal for solenoids, valves, positioners, actuators, and relays.
· Hydraulic and Pneumatic Systems: Efficiently controls fluid movements.
· Chemical Processing: Manages actuators and valves in harsh environments.
· Environmental Monitoring and HVAC: Controls equipment for optimal performance.
· Medical Equipment: Powers analyzers and other critical devices.
DRV103H/2K5's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI DRV103H/2K5 stands out as a powerful low-side driver suitable for a range of demanding applications. Its impressive specifications, including a high output current and extensive protection features, make it an excellent choice for engineers seeking reliability and performance.
