TPS54360DDA: Features, Specs & More
In the fast-paced world of electronics, choosing the right DC-DC converter is crucial for optimal performance and efficiency. The Texas Instruments (TI) TPS54360DDA stands out as a synchronous step-down converter capable of delivering reliable power across various applications. In this comprehensive article, we'll delve into the intricacies of the TPS54360DDA, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

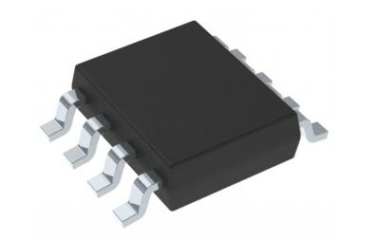

TPS54360DDA's Overview
The TI TPS54360DDA is a high-performance synchronous step-down DC-DC converter designed to efficiently convert input voltages ranging from 4.5V to 60V into adjustable output voltages from 0.8V to 58.8V. With a maximum output current of 3.5A, this versatile device is ideal for various applications, including automotive and industrial power systems. In this article, we'll delve into its key features, specifications, applications, and more.
Key Features
Let's delve into the standout features that make the TPS54360DDA a standout in the world of electronics:
· With a maximum output current of 3.5A, the TPS54360DDA is designed for efficiency, minimizing power loss and heat generation.
· The output voltage can be fine-tuned to meet specific needs, enhancing versatility in design.
· This high frequency allows for smaller passive components, contributing to a compact circuit design.
· Operates effectively within a broad input range (4.5V to 60V), making it ideal for various power supply systems.
· Suitable for harsh environments, it operates effectively from -40°C to 125°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TPS54360DDA:
Type | Parameter |
Type | Synchronous Step Down |
Output Type | Adjustable |
Switching Frequency (kHz) | 2500 |
Switching Regulator | Yes |
Number of Outputs | 1 |
Output Voltage (V) | 0.8 to 58.8 |
Maximum Output Current (A) | 3.5 |
Minimum Input Voltage (V) | 4.5 |
Maximum Input Voltage (V) | 60 |
Operating Supply Voltage (V) | 4.5 to 60 |
Typical Quiescent Current (uA) | 146 |
Maximum ESD Protection Voltage (kV) | 0.5@CDM/2@HBM |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 1.55(Max) |
Package Width | 4(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | HSOIC EP |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The TPS54360DDA is ideal for various applications, including:
· Vehicle Accessories: Powering GPS, entertainment systems, and Advanced Driver Assistance Systems (ADAS).
· USB Dedicated Charging Ports: Efficiently manages battery charging.
· Industrial Automation: Powers control systems and motor drives.
· Communication Systems: Supports 12V, 24V, and 48V power systems in industrial and automotive contexts.
TPS54360DDA's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In summary, the TI TPS54360DDA offers a robust and versatile solution for power management needs. Its wide input range, adjustable output, and impressive efficiency make it suitable for a variety of applications, from automotive to industrial automation.
