SN65DPHY440SSRHRR: Features, Specs & More
When it comes to high-performance data transmission in electronics, the TI SN65DPHY440SSRHRR stands out as a powerful CSI-2/DSI D-PHY Retimer. Designed for devices like notebooks, tablets, and cameras, this retimer is built to enhance data integrity, reduce noise, and provide stable performance even under harsh industrial conditions. In this comprehensive article, we'll delve into the intricacies of the SN65DPHY440SSRHRR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
SN65DPHY440SSRHRR's Manufacturer
SN65DPHY440SSRHRR's Overview
The TI SN65DPHY440SSRHRR is a CSI-2/DSI D-PHY Retimer designed to boost the performance of high-speed data transmission protocols, commonly used in camera interfaces and displays. It serves a critical role in reducing signal degradation over long distances, maintaining signal integrity, and eliminating jitter, which is crucial for reliable communication between devices.
Key Features
Let's delve into the standout features that make the SN65DPHY440SSRHRR a standout in the world of electronics:
· The retimer is optimized for CSI-2 and DSI interfaces, ensuring high-speed data transmission with reduced signal noise and minimal latency.
· The device operates with a supply voltage between 1.62V and 1.98V, making it power-efficient and suitable for portable devices like tablets and notebooks.
· With an operating temperature range of -40°C to 85°C, it is designed to function in industrial environments, making it highly reliable in rugged conditions.

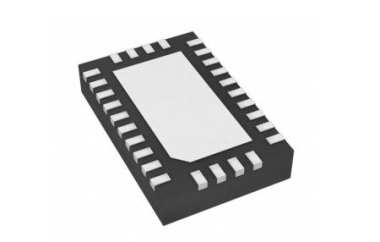

· Measuring just 0.75mm in height and packaged in a 28-pin WQFN (EP) format, this retimer is ideal for space-constrained applications.
· The surface mount design simplifies integration into PCBs, reducing complexity in assembly and production.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the SN65DPHY440SSRHRR:
Type | Parameter |
Product Category | CSI-2/DSI DPHY Retimer |
Interface Type | I2C |
Minimum Operating Supply Voltage (V) | 1.62 |
Typical Operating Supply Voltage (V) | 1.8 |
Maximum Operating Supply Voltage (V) | 1.98 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Mounting | Surface Mount |
Package Height | 0.75(Max) |
Package Width | 3.6(Max) |
Package Length | 5.6(Max) |
PCB changed | 28 |
Standard Package Name | QFN |
Supplier Package | WQFN EP |
Pin Count | 28 |
Lead Shape | No Lead |
* SN65DPHY440SSRHRR's Datasheet
Applications
The TI SN65DPHY440SSRHRR has a wide range of applications in modern electronic devices. Its robust data transmission capabilities make it ideal for:
· Notebook PCs: The retimer ensures smooth communication between internal camera modules and displays, providing clear visuals and enhancing the user experience.
· Clamshell Devices: In foldable or convertible laptops, the retimer improves the reliability of high-speed data transfer, even in devices with unique form factors.
· Tablets: For slim, portable devices where internal space is limited, this retimer provides efficient signal transmission while maintaining low power consumption.
· Cameras: In high-end cameras, the retimer ensures that high-definition images are transmitted with minimal signal degradation, contributing to clearer and sharper visuals.
SN65DPHY440SSRHRR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI SN65DPHY440SSRHRR is an essential component for ensuring reliable high-speed data transmission in devices that require robust signal integrity. Whether used in notebooks, tablets, or cameras, this D-PHY retimer improves performance, reduces noise, and ensures stable data transfer even in challenging environments.
