MCIMX7D2DVM12SD: Features, Specs & More
In today's rapidly evolving electronics landscape, selecting the right system-on-chip (SoC) can significantly impact the performance and efficiency of your devices. The Freescale Semiconductor, Inc. (now part of NXP Semiconductors) MCIMX7D2DVM12SD stands out as a powerful and versatile choice for a variety of applications. In this comprehensive article, we'll delve into the intricacies of the MCIMX7D2DVM12SD, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MCIMX7D2DVM12SD's Manufacturer
MCIMX7D2DVM12SD's Overview
The Freescale MCIMX7D2DVM12SD is an application processor within the i.MX 7Dual family. It combines the capabilities of the ARM Cortex-A7 and Cortex-M4 cores to support both high-performance and low-power processing needs, making it an optimal choice for applications requiring efficiency and multi-functionality. This processor integrates several key features that make it versatile across a wide array of applications, including industrial, medical, and consumer electronics.
Key Features
Let's delve into the standout features that make the MCIMX7D2DVM12SD a standout in the world of electronics:
· Combines the ARM Cortex A7 for high-performance applications and ARM Cortex M4 for real-time tasks.
· With a program memory size of 96KB and a RAM size of 256KB, the i.MX 7Dual can efficiently manage complex applications.
· Features multiple interfaces including Ethernet, I2C, SPI, UART, and USB, enabling easy integration into various systems.
· Operates reliably in environments ranging from 0°C to 85°C, making it suitable for diverse applications.
· Offers flexibility for developers to customize solutions tailored to specific needs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MCIMX7D2DVM12SD:
Type | Parameter |
Family Name | i.MX 7Dual |
Device Core | ARM Cortex M4|ARM Cortex A7 |
Maximum Clock Rate (MHz) | 1200 |
Program Memory Type | ROM |
Data Bus Width (bit) | 32 |
Program Memory Size | 96KB |
RAM Size | 256KB |
Type | Applications Processor |
Processing Unit | Microprocessor |
PWM | 4 |
Watchdog | 1 |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 85 |
Interface Type | Ethernet/I2C/SPI/UART/USB |
SPI | 4 |
I2C | 4 |
I2S | 0 |
UART | 7 |
Data Cache Size | 32KB|16KB |
USB | 3 |
Instruction Cache Size | 32KB|16KB |
USART | 0 |
CAN | 0 |
PCI | 0 |
Ethernet | 2 |
Programmability | Yes |
Core Architecture | ARM |
Ethernet Speed | 10Mbps/100Mbps/1000Mbps |

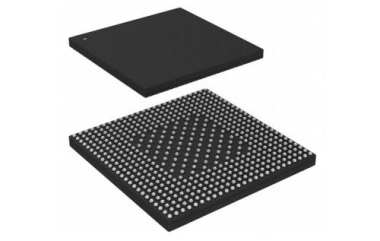

Mounting | Surface Mount |
Package Height | 1.23(Max) |
Package Width | 19 |
Package Length | 19 |
PCB changed | 541 |
Standard Package Name | BGA |
Supplier Package | LFBGA |
Pin Count | 541 |
Lead Shape | Ball |
Applications
The MCIMX7D2DVM12SD is designed for diverse applications, showcasing its adaptability in various fields:
· Audio Processing: Ideal for high-fidelity sound applications.
· Connected Devices: Supports IoT applications with multiple connectivity options.
· Access Control Panels: Enables secure and efficient access systems.
· Human-Machine Interfaces (HMI): Facilitates seamless interaction between users and machines.
· Portable Medical and Health Care Devices: Powers portable solutions for health monitoring.
· IP Phones: Ensures clear and reliable communication.
· Smart Appliances: Supports intelligent home devices for enhanced user experience.
· Point of Sale Systems: Powers secure and efficient transaction processes.
· eReaders and Wearables: Enables portable, user-friendly technology.
· Home Energy Management Systems: Assists in optimizing energy consumption in homes.
MCIMX7D2DVM12SD's Manufacturer
Freescale Semiconductor, Inc., now seamlessly integrated into NXP Semiconductors, stands as a pioneering force in the semiconductor industry. Renowned for its cutting-edge technologies, Freescale Semiconductor played a pivotal role in shaping the landscape of embedded solutions and microcontrollers. With a commitment to innovation and a rich legacy, the company has consistently delivered high-performance semiconductor solutions, catering to a diverse range of industries. Following its merger with NXP Semiconductors, a global semiconductor powerhouse, the legacy of Freescale continues to thrive, fostering advancements in automotive, industrial, and IoT applications.
Conclusion
The Freescale Semiconductor MCIMX7D2DVM12SD is a versatile and powerful SoC suitable for a range of applications, from smart devices to healthcare solutions. Its dual-core architecture, robust performance specifications, and extensive interface options make it an ideal choice for developers aiming to create innovative and efficient electronic solutions.
