ADM202EARNZ-REEL7: Features, Specs & More
In the fast-evolving world of electronics, the choice of components can significantly influence the performance and reliability of your devices. Among these crucial components is the ADI ADM202EARNZ-REEL7, a dual transmitter and receiver RS-232 interface. In this comprehensive article, we'll delve into the intricacies of the ADM202EARNZ-REEL7, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADM202EARNZ-REEL7's Manufacturer
ADM202EARNZ-REEL7's Overview
The ADI ADM202EARNZ-REEL7 is a dual RS-232 transceiver designed to facilitate serial communication in a point-to-point topology. It supports a data rate of up to 230 Kbps, making it an efficient choice for reliable data transmission between devices. The transceiver is compliant with the EIA/TIA-232-E and RS-232 standards, ensuring compatibility across various applications.
Key Features
Let's delve into the standout features that make the ADM202EARNZ-REEL7 a standout in the world of electronics:
· It integrates two transmitters and two receivers, allowing for simultaneous data transmission and reception.
· Capable of handling data rates up to 230 Kbps, it ensures fast and efficient communication.
· With a minimum operating temperature of -40°C and a maximum of 85°C, it is suitable for industrial applications.
· Operates on a single supply voltage ranging from 4.5V to 5.5V, simplifying design requirements.

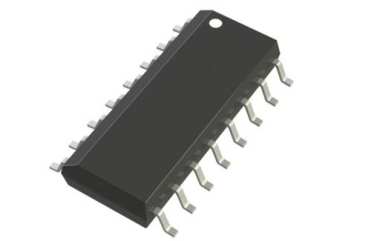

· Designed in a 16-pin SOIC N package, it is easy to integrate into various PCB layouts.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADM202EARNZ-REEL7:
Type | Parameter |
Function | Line Transceiver |
Data Rate | 230Kbps(Min) |
Transmitter Communication Type | RS-232 |
Receiver Communication Type | RS-232 |
Interface Standards | EIA/TIA-232-E|RS-232|V.28 |
Data Transmission Topology | Point-to-Point |
Number of Transceivers | 2 |
Number of Transmitters | 2 |
Number of Receivers | 2 |
Transmitter Signal Type | Single-Ended |
Receiver Signal Type | Single-Ended |
Process Technology | CMOS |
Number of Drivers per Line | 1 |
Number of Receivers per Line | 1 |
Driving Mode | No |
Number of Transmitter Enables | 0 |
Number of Receiver Enables | 0 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Power Supply Type | Single |
Minimum Single Supply Voltage (V) | 4.5 |
Typical Single Supply Voltage (V) | 5 |
Maximum Single Supply Voltage (V) | 5.5 |
Maximum Supply Current (mA) | 18 |
Supplier Temperature Grade | Industrial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.5(Max) |
Package Width | 4(Max) |
Package Length | 10(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC N |
Pin Count | 16 |
Lead Shape | Gull-wing |
* ADM202EARNZ-REEL7's Datasheet
Applications
The versatility of the ADM202EARNZ-REEL7 allows it to be utilized in various applications, including:
· General-Purpose RS-232 Data Link: Ideal for standard serial communication needs across different devices.
· Portable Instruments: Provides reliable communication for handheld devices and testing equipment.
· Personal Digital Assistants (PDAs): Facilitates data transfer in compact and mobile technology.
ADM202EARNZ-REEL7's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI ADM202EARNZ-REEL7 dual transmitter/receiver RS-232 is an excellent choice for anyone looking to implement reliable communication in their electronic projects. With its impressive specifications, versatile applications, and the backing of a reputable manufacturer, it stands out as a crucial component in the electronics realm.
