ADC3660IRSBT: Features, Specs & More
In today's fast-paced world of electronics, precision and speed are key to successful data acquisition and signal processing. Texas Instruments (TI) has designed the ADC3660IRSBT, a cutting-edge 16-bit, 65Msps dual analog-to-digital converter (ADC) that meets the high demands of modern applications like radar, wireless communications, and power quality monitoring. In this comprehensive article, we'll delve into the intricacies of the ADC3660IRSBT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADC3660IRSBT's Overview
The ADC3660IRSBT is a high-performance dual-channel SAR (Successive Approximation Register) ADC that supports a sampling rate of 65 million samples per second (Msps). Offering a 16-bit resolution, it is designed to capture high-precision voltage signals with excellent signal-to-noise ratio (SNR), making it ideal for a variety of demanding applications. This ADC provides superior accuracy with a low integral nonlinearity error of ±4.5 LSB and offers multiple digital interface options including LVDS and serial communication protocols (0.5-wire, 1-wire, 2-wire).
Key Features
Let's delve into the standout features that make the ADC3660IRSBT a standout in the world of electronics:
· Offers two channels of analog-to-digital conversion for applications that require multi-channel data processing.
· Ensures high-precision measurements, essential for applications like power analysis, instrumentation, and communications.
· Capable of sampling at 65 million samples per second, which is ideal for high-speed data acquisition.
· Supports LVDS and serial communication interfaces (0.5-wire, 1-wire, 2-wire), providing compatibility with a wide range of systems.
· Typically consumes 142mW of power, ensuring energy efficiency without compromising performance.
· Operates reliably in extreme environments, with a temperature range from -40°C to 105°C.

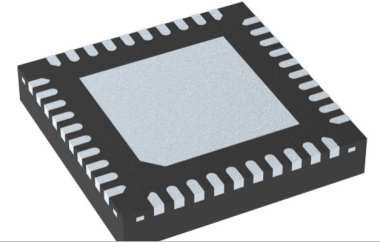

· Comes in a 40-pin WQFN EP package, suitable for surface-mount applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADC3660IRSBT:
Type | Parameter |
Converter Type | General Purpose |
Architecture | SAR |
Resolution | 16bit |
Number of ADCs | 2 |
Number of Input Channels | 2 |
Sampling Rate | 65Msps |
Digital Interface Type | LVDS|Serial (0.5-Wire, 1-Wire, 2-Wire) |
Input Type | Voltage |
Input Signal Type | Differential |
Voltage Reference | External|Internal |
Voltage Supply Source | Single |
Input Voltage | 3.2Vp-p |
Typical Power Dissipation (mW) | 142 |
Maximum Power Dissipation (mW) | 178 |
Integral Nonlinearity Error | ±4.5LSB |
Full Scale Error | 2.4%FSR(Typ) |
Signal to Noise Ratio | 89.3dBFS(Typ) |
No Missing Codes (bit) | 16 |
Sample and Hold | No |
Single-Ended Input | No |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tape and Reel |
Supplier Temperature Grade | Extended Industrial |
Mounting | Surface Mount |
Package Height | 0.75(Max) |
Package Width | 5.15(Max) |
Package Length | 5.15(Max) |
PCB changed | 40 |
Standard Package Name | QFN |
Supplier Package | WQFN EP |
Pin Count | 40 |
Applications
The ADC3660IRSBT is designed for high-speed data acquisition and signal processing, making it suitable for a broad range of applications, including:
· Data Acquisition Systems (DAQ): With its high resolution and sampling rate, the ADC3660IRSBT is perfect for applications requiring precise, real-time data capture.
· Motor Diagnostics & Monitoring: The device's ability to handle differential signals and its high-speed sampling make it ideal for monitoring motor conditions and performance.
· Power Quality Analyzers: The ADC3660IRSBT can efficiently capture and digitize signals related to power quality, providing the accuracy necessary for detailed analysis.
· Sonar & Radar Systems: Its high SNR and fast sampling rate are critical for sonar and radar applications, where precise timing and signal clarity are essential.
· Wireless Communications: The ADC3660IRSBT enables the digitization of analog signals in wireless communication systems, offering high resolution and fast processing.
· Laboratory & Field Instrumentation: Researchers and engineers can rely on this ADC for capturing high-precision measurements in various scientific experiments and fieldwork.
· Spectrometers: The ADC's excellent performance is also ideal for spectrometers, where fine resolution and fast sampling are required for accurate signal analysis.
ADC3660IRSBT's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI ADC3660IRSBT is an exceptional analog-to-digital converter designed to meet the needs of high-speed, high-precision applications. With its dual-channel configuration, high sampling rate, low power consumption, and excellent signal quality, it is well-suited for industries such as wireless communications, radar, sonar, and industrial data acquisition.
