DS3231SN#T&R: Features, Specs & More
In the world of electronics, precise timing is often essential to ensure system reliability and synchronization. The ADI DS3231SN#T&R is a real-time clock (RTC) that provides just that. This highly accurate, low-power, and reliable component is designed for use in applications where precision timekeeping is critical, such as servers, GPS systems, and utility power meters. In this comprehensive article, we'll delve into the intricacies of the DS3231SN#T&R, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
DS3231SN#T&R's Overview

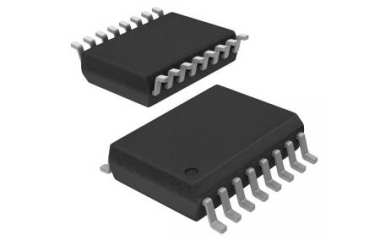

The DS3231SN#T&R is a real-time clock (RTC) with a serial interface (I2C) that includes a built-in calendar, alarm function, and battery backup. It offers highly accurate timekeeping in a 16-pin SOIC W package and is designed to operate under a wide range of temperatures, making it suitable for industrial-grade applications.
Key Features
Let's delve into the standout features that make the DS3231SN#T&R a standout in the world of electronics:
· The DS3231SN#T&R boasts high-accuracy timekeeping with an integrated temperature-compensated crystal oscillator (TCXO).
· The DS3231SN#T&R operates with a supply voltage range of 2.3V to 5.5V, making it compatible with a wide variety of systems.
· One of the standout features of the DS3231SN#T&R is its battery backup.
· The DS3231SN#T&R operates effectively within a temperature range of -40°C to 85°C, making it suitable for industrial environments where temperature fluctuations are common.
· The RTC communicates via an I2C interface, which simplifies integration into systems with limited GPIO pins and reduces the complexity of wiring.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the DS3231SN#T&R:
Type | Parameter |
Function | Clock/Calendar/Alarm/Battery Backup |
Time Format | HH:MM:SS |
Date Format | DW:DM:M:Y |
Bus Type | Serial (I2C) |
Minimum Operating Supply Voltage (V) | 2.3 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 5.5 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 2.35(Max) |
Package Width | 7.6(Max) |
Package Length | 10.5(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC W |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The DS3231SN#T&R is versatile and can be used in a wide range of applications where time synchronization is crucial. Some of the most common applications include:
· Servers: The DS3231SN#T&R ensures accurate system time, which is critical for logging and managing server operations.
· Telematics: Used in telematics systems for precise timing, helping with data transmission and coordination.
· Utility Power Meters: Accurate timekeeping is vital in energy measurement and monitoring, where precise data is needed for billing and efficiency purposes.
· GPS Systems: GPS devices rely on accurate time to synchronize satellite signals and ensure correct positioning data.
DS3231SN#T&R's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI DS3231SN#T&R real-time clock is an excellent choice for applications that demand high accuracy, reliability, and energy efficiency. Whether you're designing a server, telematics system, GPS device, or utility power meter, the DS3231SN#T&R offers the features and robustness required to ensure uninterrupted operation.
