TMS320F28034PAGT: Features, Specs & More
When it comes to embedded systems for automotive and industrial applications, selecting the right microcontroller (MCU) is critical for reliability and performance. Texas Instruments’ TMS320F28034PAGT MCU stands out as a high-performance solution, offering an impressive blend of features and capabilities designed to meet the demands of modern applications such as air conditioning systems, DC/DC converters, inverter controls, and electric vehicle (EV) charging stations. In this comprehensive article, we'll delve into the intricacies of the TMS320F28034PAGT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TMS320F28034PAGT's Manufacturer

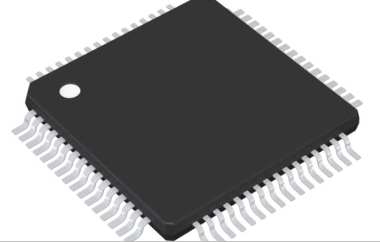

TMS320F28034PAGT's Overview
The TMS320F28034PAGT is part of TI's C2000 family, featuring a 32-bit C28x RISC architecture. It is engineered to provide powerful processing performance while maintaining low power consumption. With a maximum CPU frequency of 60 MHz and an extensive range of integrated peripherals, it is an ideal solution for applications requiring precision control and high-speed data processing.
Key Features
Let's delve into the standout features that make the TMS320F28034PAGT a standout in the world of electronics:
· The 32-bit C28x RISC core architecture provides high performance, suitable for real-time control applications.
· The MCU offers ample memory with 128KB of Flash for program storage and 20KB of RAM for data, ensuring smooth operation of applications even in resource-intensive scenarios.
· With automotive certification, this MCU is designed to withstand harsh environments.
· It supports CAN, I2C, SPI, and UART interfaces, providing flexibility for integrating with a variety of sensors and other systems.
· The TMS320F28034PAGT includes three 32-bit timers and 12 PWM channels, enabling precise control of motors and other actuators.
· The built-in 12-bit ADC with 14 channels ensures accurate sensor readings, which is essential for monitoring and controlling various parameters in automotive and industrial applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TMS320F28034PAGT:
Type | Parameter |
Family Name | C2000 |
Instruction Set Architecture | RISC |
Device Core | C28x |
Core Architecture | C28x |
Maximum CPU Frequency (MHz) | 60 |
Maximum Clock Rate (MHz) | 60 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 128KB |
RAM Size | 20KB |
Programmability | Yes |
Process Technology | CMOS |
Interface Type | CAN/I2C/SPI/UART |
Number of I/Os | 33 |
No. of Timers | 3 |
Timers Resolution (bit) | 32/32/32 |
PWM | 12 |
Number of ADCs | Single |
ADC Channels | 14 |
ADC Resolution (bit) | 12 |
USART | 0 |
UART | 1 |
USB | 0 |
SPI | 1 |
I2C | 1 |
I2S | 0 |
CAN | 1 |
Ethernet | 0 |
Watchdog | 1 |
Analog Comparators | 3 |
Parallel Master Port | No |
Real Time Clock | No |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 1.71|2.97 |
Typical Operating Supply Voltage (V) | 1.8|3.3 |
Maximum Operating Supply Voltage (V) | 1.995|3.63 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.05(Max) |
Package Width | 10.2(Max) |
Package Length | 10.2(Max) |
PCB changed | 64 |
Standard Package Name | QFP |
Supplier Package | TQFP |
Pin Count | 64 |
Lead Shape | Gull-wing |
* TMS320F28034PAGT's Datasheet
Applications
The TMS320F28034PAGT MCU is designed to excel in several industries, including automotive, industrial control, and energy management. Some key applications include:
· Air Conditioner Outdoor Units: With precise control over compressors and motors, the MCU optimizes energy efficiency and system performance.
· Motor Control & Inverters: Its ability to handle PWM signals and feedback control makes it ideal for inverter applications, such as motor drives for industrial equipment and electric vehicles.
· DC/DC Converters: The MCU’s ability to manage power conversion processes efficiently is beneficial for applications like renewable energy systems and industrial power supplies.
· EV Charging Stations: Its robust communication protocols and control features ensure reliable operation in electric vehicle (EV) charging systems, both AC and DC.
· Automated Sorting Equipment & Textile Machines: The high-speed processing capabilities enable seamless integration into automated production lines, where precision and timing are critical.
· Wireless Charging: With support for precise control over power delivery, the TMS320F28034PAGT can be used in both on-board charging (OBC) and wireless EV charging modules.
TMS320F28034PAGT's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI TMS320F28034PAGT MCU is a high-performance, versatile microcontroller that meets the demanding needs of modern automotive and industrial applications. With its robust set of features—including high-speed processing, ample memory, multiple communication interfaces, and automotive-grade certification—it offers a reliable and scalable solution for projects in motor control, power management, and more.
