LTST-C193TBKT-5A: Features, Specs & More
When it comes to high-performance lighting solutions, the LITEON LTST-C193TBKT-5A chip LED stands out for its reliability, efficiency, and vibrant blue light output. In this comprehensive article, we'll delve into the intricacies of the LTST-C193TBKT-5A, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LTST-C193TBKT-5A's Manufacturer
LTST-C193TBKT-5A's Overview

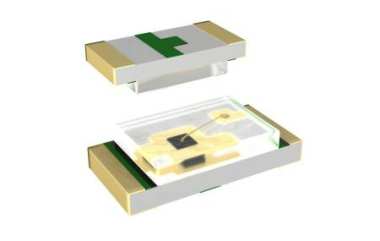

The LITEON LTST-C193TBKT-5A is a Uni-Color blue 468nm 2-pin chip LED designed for surface mount applications. It utilizes InGaN (Indium Gallium Nitride) material, known for producing bright and energy-efficient light. This LED chip features a rectangular lens with a water-clear appearance, providing a clean and focused light output. It is ideal for applications where compact size, reliable performance, and energy efficiency are key considerations.
Key Features
Let's delve into the standout features that make the LTST-C193TBKT-5A a standout in the world of electronics:
· The LTST-C193TBKT-5A emits a striking blue light at a peak wavelength of 468nm, making it suitable for various lighting and display applications.
· The chip LED has a small footprint with dimensions of 0.8mm x 1.6mm x 0.35mm, making it easy to integrate into tight spaces and designs.
· With surface-mount technology (SMT), this LED is designed for easy installation on PCBs, streamlining assembly processes.
· Offering a wide 130° viewing angle, this LED ensures uniform brightness and visibility across various applications.
· The LTST-C193TBKT-5A operates efficiently with a typical forward voltage of 2.8V and a maximum forward voltage of 3.05V.
· This LED can function effectively within a temperature range of -20°C to 80°C, making it adaptable to a variety of environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LTST-C193TBKT-5A:
Type | Parameter |
Type | Uni-Color |
Product Category | Chip LED |
Color | Blue |
Number of LEDs | 1 |
LED Material | InGaN |
Lens Shape Type | Rectangular |
Lens Appearance | Water Clear |
Mounting Orientation | Top Mount |
Intensity | 15mcd |
Dominant Wavelength (nm) | 475(Max) |
Peak Wavelength (nm) | 468 |
Viewing Angle (°) | 130 |
Maximum Forward Current (mA) | 20 |
Test Current (mA) | 5 |
Maximum Forward Voltage (V) | 3.05 |
Reverse Voltage (V) | 5 |
Internal Protection | No |
Maximum Power Dissipation (mW) | 76 |
Minimum Forward Voltage (V) | 2.65 |
Typical Forward Voltage (V) | 2.8 |
Minimum Operating Temperature (°C) | -20 |
Maximum Operating Temperature (°C) | 80 |
Lead Standoff | No |
Supplier Color | Blue |
Special Color | Blue |
High Power | No |
High Brightness | No |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.35 |
Package Width | 0.8 |
Package Length | 1.6 |
PCB changed | 2 |
Standard Package Name | SMD |
Supplier Package | Chip LED |
Pin Count | 2 |
* LTST-C193TBKT-5A's Datasheet
Applications
The LITEON LTST-C193TBKT-5A is a versatile LED that finds applications in various industries, thanks to its vibrant blue light and compact size. Some of its key uses include:
· Consumer Electronics: Ideal for backlighting in displays, status indicators, and lighting in portable devices such as smartphones, tablets, and gaming consoles.
· Automotive Lighting: This LED chip is often used in automotive dashboard indicators and lighting for various vehicle components.
· Signage and Display Systems: Its bright blue light is perfect for digital signage, display boards, and indicator lights.
· Medical Devices: Often used in medical devices where precision and durability are critical for visual signals and notifications.
LTST-C193TBKT-5A's Manufacturer
Lite-On was started in 1975 by several Taiwanese Texas Instruments ex-employees. Lite-On (also known as LiteOn and LiteON) is a Taiwanese company that primarily manufactures consumer electronics, including LEDs, semiconductors, computer chassis, monitors, motherboards, optical disc drives, and other electronic components. The Lite-On group also consists of some non-electronic companies like a finance arm and a cultural company.
Conclusion
The LITEON LTST-C193TBKT-5A Uni-Color Blue 468nm LED chip is an excellent choice for a variety of applications that require bright, efficient, and durable lighting. With its compact design, wide viewing angle, and reliable performance across a range of temperatures, it is a standout solution for consumer electronics, automotive lighting, signage, and more. As part of LITEON's diverse LED product portfolio, this chip promises to meet the needs of industries looking for quality lighting solutions that balance performance with energy efficiency.
