AT88SC0204CA-Y6H-T: Features, Specs & More
When it comes to storing data securely and efficiently in electronics, EEPROMs are indispensable. The Microchip AT88SC0204CA-Y6H-T stands out as an ideal solution for embedded applications requiring reliable, non-volatile memory. In this comprehensive article, we'll delve into the intricacies of the AT88SC0204CA-Y6H-T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AT88SC0204CA-Y6H-T's Manufacturer
AT88SC0204CA-Y6H-T's Overview

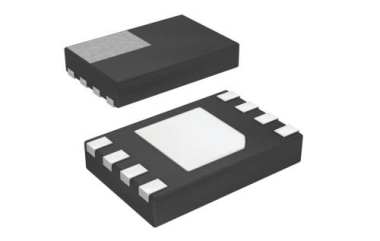

The Microchip AT88SC0204CA-Y6H-T is a 2K-bit EEPROM, meaning it offers 2,048 bits of non-volatile memory. This type of memory is critical in systems where data retention is needed even after power is lost, making it ideal for settings where consistent and reliable data storage is crucial. The EEPROM uses a serial 2-wire interface to communicate with microcontrollers, providing a straightforward, efficient way to read and write data.
Key Features
Let's delve into the standout features that make the AT88SC0204CA-Y6H-T a standout in the world of electronics:
· With a memory size of 2K bits, this EEPROM offers sufficient storage for a variety of data types in embedded systems.
· The memory is organized into 512 rows of 4 bits each, optimizing read and write operations.
· The device operates with a typical supply voltage of 3.3V or 5V, and a low operating current of just 5mA, making it energy efficient.
· The maximum access time is 250ns, enabling fast data retrieval, crucial for time-sensitive applications.
· The device can operate between -40°C and 85°C, making it suitable for industrial environments and other harsh conditions.
· Designed to withstand extreme conditions, the AT88SC0204CA-Y6H-T features an industrial temperature grade, ensuring reliable performance across diverse applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AT88SC0204CA-Y6H-T:
Type | Parameter |
Chip Density (bit) | 2K |
Organization | 512x4 |
Programmability | Yes |
Data Retention (Year) | 10 |
Max. Access Time (ns) | 250 |
Maximum Operating Frequency (MHz) | 4 |
Interface Type | Serial-2Wire |
Minimum Operating Supply Voltage (V) | 2.7 |
Typical Operating Supply Voltage (V) | 3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Operating Current (mA) | 5 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Hardware Data Protection | No |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.55(Max) |
Package Width | 3 |
Package Length | 2 |
PCB changed | 8 |
Standard Package Name | DFN |
Supplier Package | UDFN EP |
Pin Count | 8 |
Lead Shape | No Lead |
* AT88SC0204CA-Y6H-T's Datasheet
Applications
The AT88SC0204CA-Y6H-T is designed for a wide variety of applications across different industries, including:
· Consumer Electronics: From wearable devices to smart appliances, the AT88SC0204CA-Y6H-T offers a compact solution for storing configuration data, user settings, and other small, non-volatile information.
· Industrial Automation: The industrial-grade temperature range makes it ideal for controlling systems in harsh environments, including factory automation and robotics.
· Automotive: In the automotive sector, the EEPROM is often used for data logging, calibration, and storing configuration settings for electronic control units (ECUs).
· Medical Devices: The AT88SC0204CA-Y6H-T's reliable data retention and low power consumption make it an ideal choice for critical applications in medical devices that require continuous, non-volatile memory.
· Smartcards & Security: With a high level of data security and low power usage, this EEPROM is often used in secure applications such as RFID tags and smartcards.
AT88SC0204CA-Y6H-T's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
In a world where efficient and reliable memory storage is critical, the Microchip AT88SC0204CA-Y6H-T offers a top-tier solution for a variety of embedded applications. Its combination of low power consumption, fast access times, and industrial-grade reliability makes it an ideal choice for anyone looking to enhance their electronic systems with secure and efficient non-volatile memory.
