TMS5704357BZWTQQ1: Features, Specs & More
In the ever-evolving world of automotive and industrial electronics, choosing the right microcontroller (MCU) is pivotal to achieving optimal performance, reliability, and efficiency. The TI TMS5704357BZWTQQ1, a cutting-edge MCU from Texas Instruments, has emerged as a top-tier choice for demanding applications. In this comprehensive article, we'll delve into the intricacies of the TMS5704357BZWTQQ1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TMS5704357BZWTQQ1's Manufacturer
TMS5704357BZWTQQ1's Overview
The TI TMS5704357BZWTQQ1 is a high-performance microcontroller tailored for automotive and industrial applications. It combines a robust 32-bit ARM Cortex R5F core with advanced features like extensive memory, high-speed interfaces, and integrated safety mechanisms. This MCU is built to excel in environments requiring precise control, quick response times, and rigorous safety standards.
Key Features
Let's delve into the standout features that make the TMS5704357BZWTQQ1 a standout in the world of electronics:
· The microcontroller is powered by an ARM Cortex-R5F core running at up to 300MHz, ensuring high performance for demanding applications.
· It features 4MB of Flash memory and 512KB of RAM, providing ample storage for programs and data.
· With dual 12-bit ADCs and 41 channels per ADC, it offers precise analog-to-digital conversion capabilities.
· The device supports multiple communication interfaces, including 4 CAN channels, Ethernet, 5 SPI channels, 4 UARTs, and 2 I2C channels.
· It comes with 78 PWM channels for accurate motor and actuator control, along with 4 timers for advanced timing applications.
· The operating voltage ranges from 1.14V to 3.6V, with a wide temperature range of -40°C to 125°C, making it suitable for harsh environments.
· Safety is enhanced with an integrated Watchdog Timer and compliance with AEC-Q100 automotive standards.

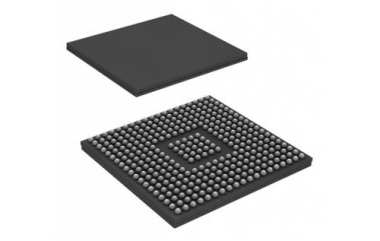

· The microcontroller is housed in a compact 337-pin NFBGA package, ideal for space-constrained designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TMS5704357BZWTQQ1:
Type | Parameter |
Family Name | TMS570 |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex R5F |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 300 |
Maximum Clock Rate (MHz) | 300 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 4MB |
RAM Size | 512KB |
Maximum Expanded Memory Size | 4GB |
Programmability | Yes |
Interface Type | CAN/Ethernet/I2C/SPI/UART |
Number of I/Os | 168 |
No. of Timers | 4 |
PWM | 78 |
Number of ADCs | Dual |
ADC Channels | 41/41 |
ADC Resolution (bit) | 12/12 |
USART | 0 |
UART | 4 |
USB | 0 |
SPI | 5 |
I2C | 2 |
I2S | 0 |
CAN | 4 |
Ethernet | 1 |
Watchdog | 1 |
Parallel Master Port | No |
Real Time Clock | No |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 1.14|3 |
Typical Operating Supply Voltage (V) | 1.2|3.3 |
Maximum Operating Supply Voltage (V) | 1.32|3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 0.95(Max) |
Package Width | 16.1(Max) |
Package Length | 16.1(Max) |
PCB changed | 337 |
Standard Package Name | BGA |
Supplier Package | NFBGA |
Pin Count | 337 |
Lead Shape | Ball |
* TMS5704357BZWTQQ1's Datasheet
Applications
The TMS5704357BZWTQQ1 is a versatile MCU suited for a wide range of applications, including:
1.Automotive Systems:
· Antilock Brake Systems (ABS)
· Electronic Stability Control (ESC)
· Electric Power Steering (EPS)
· Battery Management Systems (BMS)
2.Industrial and Aerospace:
· HEV and EV inverter systems
· Active driver assistance systems (ADAS)
· Aerospace and avionics controls
3.Specialized Use Cases:
· Railway communications
· Off-road vehicle electronics
TMS5704357BZWTQQ1's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI TMS5704357BZWTQQ1 microcontroller is a powerhouse of performance, flexibility, and reliability, tailored to meet the rigorous demands of automotive and industrial applications. Its advanced features, coupled with Texas Instruments' commitment to quality, make it an ideal choice for engineers and developers aiming to create robust and future-ready solutions.
