What Is A Backward Diode?
In the vast world of electronic components, diodes play a crucial role as fundamental elements. Among them, a special type known as the Backward Diode stands out due to its unique current-voltage characteristics, making it widely used in high-frequency signal processing, wireless communications, and high-precision measurements. This article delves into the Backward Diode, exploring its definition, operating principles, characteristics and advantages, applications, and more.
Catalog
III. Characteristics and Advantages
V. Backward Diode vs. Regular Diode

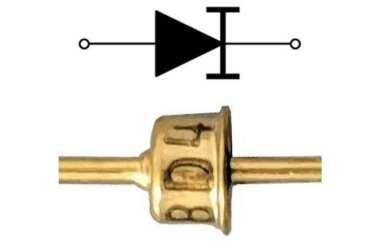

I. What Is A Backward Diode?
A Backward Diode is a type of diode with distinct reverse current characteristics. Unlike regular diodes, which block current in the reverse bias, a backward diode allows current to flow at low reverse voltages. The reverse current changes non-linearly and displays conductance behavior different from that of standard diodes. This unique property makes it highly advantageous for high-frequency circuits and sensitive signal processing applications.
II. Operating Principle
The operating principle of the backward diode is based on its unique PN junction structure. Under reverse bias, instead of abruptly blocking the current like conventional diodes, the backward diode exhibits a non-linear current-voltage relationship. At certain reverse voltages, current begins to flow at a low level. This feature leads to a significant difference in the relationship between current and voltage in its reverse operating region, making it particularly sensitive to high-frequency signals and capable of providing precise responses.
III. Characteristics and Advantages
· Low Noise: The backward diode's low-noise property is a significant advantage in high-frequency signal processing. Due to its reverse-bias characteristics, it effectively reduces circuit noise and ensures signal purity, particularly in RF (Radio Frequency) and microwave frequencies.
· Fast Response: In high-frequency applications, the backward diode responds quickly to changes in input signals, making it ideal for circuits requiring rapid response, such as signal mixing and modulation.
· Non-Linear Behavior: The backward diode exhibits a clear non-linear current-voltage characteristic, which is useful in specific applications like mixing, modulation, and signal detection.
· High-Frequency Performance: The backward diode operates stably in high-frequency environments. Its structure and materials enable it to meet the demands of high-speed electronic devices and communication systems.
IV. Applications
The unique characteristics of the backward diode make it widely used across various electronic industries:
· RF and Microwave Frequencies: The backward diode is often used as a detector or amplifier for signals, reducing noise and ensuring accurate signal transmission.
· Communication Systems: In mixers and modulators, the backward diode plays a crucial role by converting signals from one frequency to another. It is widely applied in wireless communication devices and radar systems.
· Signal Detection: The backward diode is used as a detector, especially in detecting low-intensity signals. It can accurately capture weak signals and provide high-sensitivity responses.
· Circuit Protection: In some sensitive electronic circuits, the backward diode is used to protect circuits from excessive voltages, particularly in high-frequency applications, preventing damage caused by overloads or voltage spikes.
V. Backward Diode vs. Regular Diode
Characteristic | Backward Diode | Regular Diode |
Reverse Current Behavior | Allows small reverse current to flow with non-linear variation | No reverse current until breakdown voltage |
Current-Voltage Characteristic | Non-linear relationship between reverse current and reverse voltage | Reverse current is zero until breakdown voltage |
Application | High-frequency signal processing, mixers, modulators | Power rectification, circuit protection |
Response Speed | Fast response, suitable for high-frequency circuits | Suitable for low-frequency applications |
Operating Region | Primarily operates in reverse bias | Primarily operates in forward bias |
The primary difference between backward diodes and regular diodes lies in their reverse current characteristics. The backward diode allows current to flow at lower reverse voltages, while the regular diode blocks reverse current until the reverse voltage reaches the breakdown voltage.
VI. Conclusion
The Backward Diode plays an essential role in high-frequency electronic circuits, wireless communications, and signal processing, thanks to its unique current-voltage characteristics. Its low-noise, fast response, and non-linear features make it widely used in modern electronic devices. With the continued development of high-frequency technologies, the backward diode will continue to play a vital role in high-precision measurements and signal processing applications.
