NRVS1AFL: Features, Specs & More
In the ever-evolving world of automotive electronics, finding reliable, high-performance components is essential. The Onsemi NRVS1AFL switching diode is one such component, offering impressive capabilities for a range of automotive applications. With its robust design and industry-standard features, this diode ensures optimal performance, even in harsh environments. In this comprehensive article, we'll delve into the intricacies of the NRVS1AFL, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
NRVS1AFL's Overview

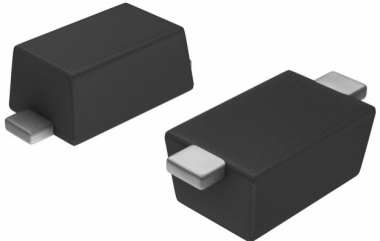

The Onsemi NRVS1AFL is a switching diode designed for high-reliability applications, specifically in automotive environments. Featuring a 50V reverse voltage rating and a 1A forward current rating, it is ideal for circuits that require efficient switching performance. Its AEC-Q101 certification assures that it meets the stringent quality and performance standards required for automotive use, ensuring long-lasting, dependable operation in a variety of critical applications.
Key Features
Let's delve into the standout features that make the NRVS1AFL a standout in the world of electronics:
· The NRVS1AFL can handle up to 50V reverse voltage, making it suitable for a wide range of automotive and industrial circuits that operate within this voltage range.
· With a forward current rating of 1A, this diode is capable of handling typical loads in automotive applications without compromising efficiency.
· The AEC-Q101 certification ensures the NRVS1AFL is built to meet the demanding requirements of automotive environments, including thermal cycling, high-reliability standards, and resistance to vibrations and shocks.
· The diode features a 30A peak non-repetitive surge current, allowing it to handle sudden, brief surges of current commonly encountered in automotive electronics.
· The SOD-123F package offers a compact form factor, with dimensions of 1.08mm height, 1.95mm width, and 3.0mm length
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the NRVS1AFL:
Type | Parameter |
Type | Switching Diode |
Configuration | Single |
Maximum DC Reverse Voltage (V) | 50 |
Peak Reverse Repetitive Voltage (V) | 50 |
Maximum Continuous Forward Current (A) | 1 |
Peak Non-Repetitive Surge Current (A) | 30 |
Peak Forward Voltage (V) | 1.1 |
Peak Reverse Current (uA) | 1 |
Peak Reverse Recovery Time (ns) | 2000 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 175 |
Packaging | Tape and Reel |
Supplier Temperature Grade | Automotive |
Mounting | Surface Mount |
Package Height | 1.08(Max) |
Package Width | 1.95(Max) |
Package Length | 3(Max) |
PCB changed | 2 |
Standard Package Name | SOD |
Supplier Package | SOD-123F |
Pin Count | 2 |
Applications
The onsemi NRVS1AFL is widely used in automotive electronics, particularly in applications where switching performance, reliability, and space efficiency are paramount. Some of the key applications include:
· Automotive Power Management: This diode is used in circuits that control the flow of current in power management systems, such as voltage regulators and DC-DC converters.
· Protection Circuits: Its ability to handle high surge currents makes it ideal for use in electrical protection circuits, protecting sensitive components from power spikes and transients.
· Signal Processing: The fast switching capabilities of the NRVS1AFL make it suitable for use in signal processing applications, including signal clamping and waveform shaping.
· Lighting and Charging Systems: Used in automotive lighting systems and electric vehicle charging circuits, the diode helps manage current flow efficiently, contributing to the overall system performance.
NRVS1AFL's Manufacturer
ON Semiconductor, stylized in lowercase as "onsemi", stands at the forefront of technological innovation, driving advancements that power intelligent and energy-efficient systems worldwide. With a commitment to delivering cutting-edge solutions, ON Semiconductor provides a comprehensive portfolio of semiconductor products, spanning power management, analog, sensor, and connectivity solutions. Leveraging a legacy of over 20 years, the company has solidified its position as a trusted partner for industries ranging from automotive and industrial to consumer electronics and healthcare.
Conclusion
The onsemi NRVS1AFL switching diode is a versatile and reliable component that plays a crucial role in automotive power management, protection circuits, and more. With its robust features, compact size, and wide temperature range, it meets the high standards required for automotive applications.
