MAX3100EEE+T: Features, Specs & More
In the ever-evolving world of electronics and communication technologies, efficient data transmission and communication protocols are key to optimizing system performance. One such solution, the ADI MAX3100EEE+T, stands out for its versatile UART functionality. In this comprehensive article, we'll delve into the intricacies of the MAX3100EEE+T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MAX3100EEE+T's Overview
The MAX3100EEE+T is a single-channel UART (Universal Asynchronous Receiver-Transmitter) with a 16-byte FIFO (First In, First Out) buffer. It is designed to provide efficient and reliable communication, with the ability to handle both RS-232 and RS-485 communication standards. Operating at both 3.3V and 5V logic levels, this UART is a versatile choice for a wide range of applications, from handheld devices to embedded communication systems.
Key Features
Let's delve into the standout features that make the MAX3100EEE+T a standout in the world of electronics:
· The MAX3100EEE+T provides a single-channel UART interface with 16-byte FIFO for both transmit and receive operations.
· This chip supports both the RS-232 and RS-485 standards, enabling its use in a variety of communication systems.
· With a maximum supply current of 1mA and a maximum power dissipation of 667mW, the MAX3100EEE+T is energy efficient.
· It operates with a minimum supply voltage of 2.7V and can handle a maximum of 5.5V, offering flexibility in system design.
· The chip is designed to operate efficiently in temperatures ranging from -40°C to 85°C.

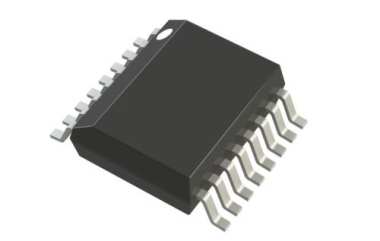

· The MAX3100EEE+T comes in a 16-pin QSOP package with a compact size of 1.47mm height, 3.89mm width, and 4.9mm length.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MAX3100EEE+T:
Type | Parameter |
Number of Channels per Chip | 1 |
Transmit FIFO (byte) | 16 |
Receive FIFO (byte) | 16 |
Maximum Data Rate | 230KBd |
Transmitter and Receiver FIFO Counter | No |
Standard Supported | RS-232|RS-485 |
Process Technology | BiCMOS |
Minimum Operating Supply Voltage (V) | 2.7 |
Maximum Operating Supply Voltage (V) | 5.5 |
Typical Operating Supply Voltage (V) | 3.3|5 |
Maximum Supply Current (mA) | 1 |
Maximum Power Dissipation (mW) | 667 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
DMA Support | No |
False Start Bit Detection | No |
Automatic Software Flow Control | No |
Automatic Hardware Flow Control | No |
Supplier Temperature Grade | Extended |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.47 |
Package Width | 3.89 |
Package Length | 4.9 |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | QSOP |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The ADI MAX3100EEE+T is a highly versatile UART chip that finds applications across a variety of industries. Its features make it particularly suitable for systems requiring reliable communication, low power, and extended temperature tolerance.
· Handheld Instruments: The MAX3100EEE+T is ideal for portable measurement tools and handheld devices that require reliable data transmission without consuming excessive power.
· Intelligent Instrumentation: It is used in intelligent instrumentation systems, such as sensors and controllers, to ensure seamless data transfer in critical applications.
· UART in SPI Systems: The chip can be integrated into SPI (Serial Peripheral Interface) systems to handle communication in embedded systems efficiently.
· Small Networks in HVAC or Building Control: The MAX3100EEE+T can be used in low-power communication systems like HVAC (heating, ventilation, and air conditioning) or building automation, where robust and efficient serial communication is essential.
· Isolated RS-232/RS-485: It can directly drive opto-couplers, offering isolation in critical industrial systems that use RS-232 or RS-485 standards.
· Low-Cost IR Data Links for Computers/Peripherals: For applications like infrared data links, the MAX3100EEE+T ensures efficient communication with minimal cost.
MAX3100EEE+T's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI MAX3100EEE+T UART is a robust, low-power, and highly versatile solution for serial communication needs in embedded systems. Whether you're designing handheld instruments, building automation networks, or integrating UART into SPI systems, this chip offers the performance and reliability required for demanding applications. With its wide operating voltage range, compact form factor, and support for both RS-232 and RS-485 standards, the MAX3100EEE+T ensures that your communication systems are both efficient and scalable.
