ADXL355BEZ-RL7: Features, Specs & More
In the world of advanced sensors, the ADI ADXL355BEZ-RL7 stands out as a powerful triple-axis accelerometer designed to meet the high demands of precision motion sensing. In this comprehensive article, we'll delve into the intricacies of the ADXL355BEZ-RL7, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADXL355BEZ-RL7's Overview

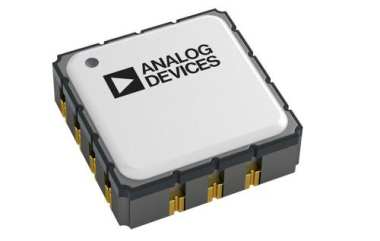

The ADI ADXL355BEZ-RL7 is a high-performance accelerometer that provides digital output with a triple-axis measurement capability. This component is specifically designed to measure acceleration in three directions (X, Y, and Z axes) with high sensitivity and precision. Offering a range of ±2.048g, ±4.096g, and ±8.192g, the ADXL355BEZ-RL7 is built for versatile applications requiring reliable motion and tilt sensing data in a compact 14-pin LCC package.
Key Features
Let's delve into the standout features that make the ADXL355BEZ-RL7 a standout in the world of electronics:
· The ADXL355BEZ-RL7 offers full 3D measurement, allowing for precise motion tracking along all three axes.
· The device supports multiple acceleration ranges: ±2.048g, ±4.096g, and ±8.192g.
· The ADXL355BEZ-RL7 provides high sensitivity, with ranges varying from 184 mV/g to 432 mV/g depending on the acceleration range.
· Unlike analog accelerometers, the ADXL355BEZ-RL7 features a digital output, which simplifies integration with modern digital systems.
· With an operational temperature range from -40°C to 125°C, this accelerometer is designed for use in harsh environments.
· The ADXL355BEZ-RL7 operates efficiently at 3.3V with a typical supply voltage of 3.3V and a minimum operating voltage of 2.25V.
· The device comes in a surface-mountable 14-pin CLLCC package.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADXL355BEZ-RL7:
Type | Parameter |
Axis Type | Triple |
Module/IC Classification | IC |
Acceleration (g) | ±2.048/±4.096/±8.192 |
Device Sensitivity Range | 184mv/g to 216mv/g|368mv/g to 432mv/g|92mv/g to 108mv/g |
Resonant Frequency (kHz) | 2.4 |
Output Type | Digital |
Minimum Operating Supply Voltage (V) | 2.25 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 2.2 |
Package Width | 6 |
Package Length | 6 |
PCB changed | 14 |
Standard Package Name | LCC |
Supplier Package | CLLCC |
Pin Count | 14 |
Lead Shape | No Lead |
Applications
The ADXL355BEZ-RL7 accelerometer is designed for a wide range of advanced applications. Some of the most notable include:
· Inertial Measurement Units (IMUs): The accelerometer is ideal for use in IMUs, providing precise motion data for navigation and control systems.
· Altitude and Heading Reference Systems (AHRS): It plays a crucial role in AHRS, which is used for aircraft and drone navigation, ensuring stability and accurate orientation data.
· Platform Stabilization Systems: Used in systems that stabilize platforms such as satellites, drones, or cameras, ensuring steady operations even in dynamic conditions.
· Structural Health Monitoring: The ADXL355BEZ-RL7 can monitor vibrations and accelerations in infrastructure like bridges and buildings to detect signs of structural fatigue or damage.
· Seismic Imaging: In seismic studies, the accelerometer helps in monitoring ground movements to detect earthquakes or analyze geological features.
· Tilt Sensing: It is used in tilt sensing applications, such as leveling systems and tilt-based controls for machinery.
· Robotics: The accelerometer is crucial for motion control in robotics, allowing for precise tracking of robotic arms and vehicles.
· Condition Monitoring: It is also applied in industrial equipment for predictive maintenance, providing data that helps identify issues before they cause significant failures.
ADXL355BEZ-RL7's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI ADXL355BEZ-RL7 accelerometer is a versatile and high-performance sensor that excels in numerous advanced applications. With its triple-axis measurement, wide acceleration range, high sensitivity, and robust temperature resilience, it's a trusted component in fields like robotics, seismic imaging, and structural health monitoring.
