What are Latching Relays?
Latching relays play an essential role in the electronic components industry, widely used in smart meters, household appliances, industrial automation, and other fields due to their ability to maintain their state even after power is turned off. With technological advancements, the application scope of latching relays continues to expand, making them an indispensable component in systems that require high reliability and low power consumption. This article delves into the definition, working principle, characteristics and advantages, common applications, and different types of latching relays.
Catalog
III. Characteristics and Advantages

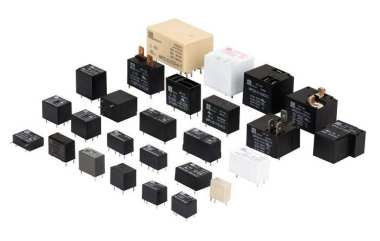

I. What are Latching Relays?
A latching relay is a type of relay that can maintain its state after being activated. It is typically chosen when there is a need to control (switch on or amplify) large currents. Latching relays can be operated manually, remotely, with pulses, or using different control inputs. The unique structure of a latching relay allows it to activate a switch using much smaller currents than many other types of switching devices, and once activated, the relay does not require continuous current to maintain its position – hence the term "latching."
A general relay switch serves as a "bridge" on one or more connected devices or circuits, receiving an input signal from one source and transmitting the on/off (set/reset) output to another. When the electromagnetic current generated by the electrical input of the first device connected to the relay causes the contacts in the switch to open or close, the circuit connected to the relay is either completed or disconnected, enabling or blocking the transmission of the electrical signal to the rest of the connected circuit.
In specific cases, a specialized type of switch called a latching relay is needed. In addition to controlling larger currents than standard relays, latching relays have the significant advantage of "memory": once activated, they remain in the last position without any further input or current until a second pulse is used to switch back to the opposite position. This contrasts with non-latching relays, which only maintain their state while they are being powered.
Due to their ability to stay in the last switched position and their operation based on short power pulses, latching relays are also known by several alternative names: Memory Relay, Bi-stable Relay, Stay Relay, and Impulse Relay.
II. Working Principle
The working principle of latching relays depends on their special internal structure. The most common principles are as follows:
Magnetic Latching Relays: These relays use permanent magnets or electromagnets to keep their contacts in a certain state. When current enters a specific coil, the relay’s contacts are attracted and remain in the current state. Even if the power is cut off, the contacts will not change until another control signal triggers a reset.
Mechanical Latching Relays: These relays use mechanical devices (such as clips, springs, etc.) to lock their state. Once the contacts are changed, the mechanical device keeps them in the current state until an external signal triggers a reset.
III. Characteristics and Advantages
Latching relays have several notable features and advantages, making them widely used in various applications:
· Low Power Consumption: Unlike traditional relays, latching relays do not require continuous power to maintain the switch state, reducing energy consumption and making them suitable for scenarios where long-term maintenance of the switch state is needed.
· Minimal Heat Production: The design of latching relays generates very little heat during operation, which effectively reduces heat buildup in the relay coil and circuit, enhancing system stability.
· Streamlined Switching Circuits: The structure of latching relays simplifies switching circuits, reducing dependence on other components and making the circuit more compact and reliable.
· Quick Operation and Dependable Performance: Latching relays respond rapidly to control signals and maintain reliable performance, even during power outages or unstable power conditions.
IV. Applications
Latching relays play a crucial role in multiple industries and applications due to their stability and energy-saving characteristics:
· Utility Meters: Latching relays are commonly used in electric, gas, and water meters, which require remote power control but cannot provide continuous power to the relay coil. Latching relays maintain their state even during power loss, ensuring the remote control function is preserved.
· Battery-Powered Devices: Portable battery-powered devices, such as medical equipment, need to conserve power as much as possible. By using latching relays, these devices can open and close circuits without draining the battery, keeping the relay in a single state.
· Lighting Control Systems: In smart lighting systems or building automation, latching relays control the on/off status of lights without requiring continuous power, which helps conserve energy.
· Security Systems: Latching relays are also used in security systems to control locks or other security devices, allowing them to maintain their last state during power failures, ensuring safety.
· Commercial Coffee Machines and Other Automated Food Preparation Equipment: Latching relays are widely used in commercial coffee machines and other automated food equipment. They help maintain the equipment's operating status after a power outage, increasing reliability and enhancing the user experience.
V. Types of Latching Relays
Depending on their working principle and design, latching relays can be classified into several types:
· Magnetic Latching Relays: These relays use permanent magnets or electromagnets as the holding mechanism. They are simple, reliable, and widely used in various low-power devices.
· Mechanical Latching Relays: These relays use mechanical structures (such as clips or springs) to hold the contacts in place. They are more durable, suitable for high-temperature and high-pressure environments but have a more complex design.
· Impulse Latching Relays: These relays switch the relay’s state by inputting a brief pulse signal and maintain the current state until the next pulse signal triggers a change. They are commonly used in high-frequency operations for precise control.
VI. Conclusion
With their unique working principles, energy efficiency, long lifespan, and high stability, latching relays have become an indispensable component in modern electronic systems. Whether in smart appliances, industrial automation, or energy management, latching relays play a vital role. As technology continues to advance, latching relays will find broader applications in more innovative products, driving the development of the electronics industry.
