What Is A Crystal Oscillator?

Crystal oscillators (XO) are essential components in the electronics industry, primarily serving the function of providing stable frequency signals. These oscillators are widely used in various electronic devices, and their stability and accuracy are crucial for the performance of modern electronic products, particularly in fields like communications, computing, automotive systems, and industrial control. This article will provide a comprehensive overview of crystal oscillators, covering their definition, working principle, characteristics, advantages, applications, and more.

Catalog

I. What is a Crystal Oscillator?

II. Working Principle

III. Characteristics and Advantages

IV. Applications

V. Common Types

VI. How to Choose a Crystal Oscillator?

VII. Conclusion

I. What is a Crystal Oscillator?

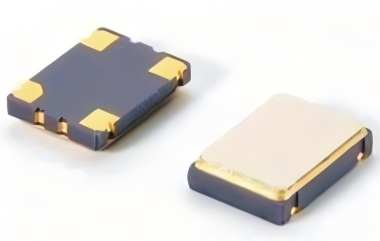

A crystal oscillator (XO) is an electronic component that generates a stable frequency signal through the piezoelectric effect of quartz crystals. Due to the excellent mechanical and electrical properties of quartz, it is widely used as a clock source in electronic circuits. Crystal oscillators take advantage of the resonant frequency of quartz crystals, amplifying the signal through an oscillating circuit and feeding it back into the crystal, thereby continuously producing a stable frequency signal.

II. Working Principle

The working principle of a crystal oscillator is based on the piezoelectric effect of quartz crystals. When subjected to an external electric field, a quartz crystal undergoes mechanical deformation, and conversely, when mechanical pressure is applied, it generates an electrical signal. In a crystal oscillator, the circuit amplifies the external electric signal through the crystal and maintains oscillation through a feedback mechanism. The resulting oscillation frequency is highly stable and less affected by environmental factors such as temperature and humidity.

III. Characteristics and Advantages

· High Precision and Stability: Crystal oscillators offer excellent frequency precision and stability, maintaining a constant output frequency over long periods. Frequency stability typically ranges from ±10 ppm to ±100 ppm (parts per million).

· Low Phase Noise: The signals generated by crystal oscillators have low phase noise, making them suitable for applications that require high signal quality.

· Low Power Consumption: Crystal oscillators have low power consumption, making them ideal for portable and battery-powered devices.

· Miniaturization: With advancements in packaging technology, crystal oscillators have become increasingly smaller, meeting the demand for compact electronic devices.

IV. Applications

Due to their superior performance and wide adaptability, crystal oscillators are used in many electronic devices. Some key application areas include:

· Communication Devices: Crystal oscillators are used as clock sources in base stations, routers, switches, and other equipment, ensuring synchronization and stability of data transmission.

· Consumer Electronics: In smartphones, tablets, televisions, and other products, crystal oscillators provide precise clock signals to ensure smooth operation of the devices.

· Industrial Control: Crystal oscillators are used for timing control in automation systems, robotics, and other industrial equipment, ensuring coordinated operation of various components.

· Precision Measurement: In frequency counters, oscilloscopes, and other testing instruments, crystal oscillators provide high-stability clock signals to ensure the accuracy of measurements.

V. Common Types

Crystal oscillators come in various types to suit different application needs:

· Standard Crystal Oscillators (SPXO): The basic type, suitable for applications with relatively low frequency stability requirements.

· Temperature Compensated Crystal Oscillators (TCXO): These feature built-in temperature compensation circuits to improve frequency stability in environments with significant temperature fluctuations.

· Oven-Controlled Crystal Oscillators (OCXO): These use an oven chamber to regulate the temperature of the crystal, minimizing the effects of temperature variations and providing extremely high-frequency stability, making them ideal for high-precision applications.

· Voltage-Controlled Crystal Oscillators (VCXO): These oscillators allow frequency adjustment via an external voltage, making them suitable for applications that require frequency tuning, such as frequency synthesizers and phase-locked loops.

VI. How to Choose a Crystal Oscillator?

When selecting a crystal oscillator, several factors should be considered:

· Frequency Stability (±ppm): This determines clock precision. Choose a crystal oscillator based on the required frequency accuracy and long-term stability for your application.

· Operating Temperature Range: Ensure the oscillator can operate stably under different environmental conditions. Industrial grade (−40°C to 85°C) vs. commercial grade (0°C to 70°C).

· Output Signal Type: Choose the appropriate output type for your device's requirements, such as CMOS, LVDS, etc.

· Packaging Form: Select the suitable packaging based on space requirements, with common options being through-hole (DIP) and surface-mount (SMD). Choose based on PCB space, such as SMD 3225, 2520.

VII. Conclusion

Crystal oscillators are indispensable components in the electronics industry. With their high stability, precision, low power consumption, and miniaturized design, they play a vital role in modern electronic devices. From communication systems and consumer electronics to industrial control and precision measurement, crystal oscillators are used in nearly all applications that require accurate clock signals. With continued advancements in technology, crystal oscillators will continue to improve, meeting the growing demands of more precise applications.
