DIY Custom Electronic Bike Bell Switch

If you're interested in DIY electronic bike bell switches, take a look at this article. In our previous DIY posts—DIY Electronic Bell for Mountain Bikes and DIY Electronic Bell Upgrade with TDA2822M Chip—we discussed how to create your own electronic bike bell. In this post, we'll walk you through how to make the switch for the bell. If you're interested, keep reading!

Because the electronic bell requires a higher current to operate, standard micro-switches aren't suitable. On the other hand, limit switches are too large and inconvenient for installation and use.

So, what should you do? You can take a plastic bottle cap and modify it by creating a button hole and zip tie mounting holes, and also add control wires.

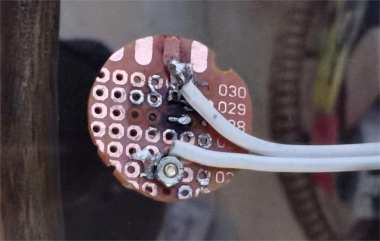

You'll also need to cut a perforated board and use a phosphor bronze sheet (with small soldered column-shaped contacts) to fix it to the board with screws for the moving contact. For the stationary contact, you can use a copper soldering tab.

Next, connect the control wires to the back.

You can use an off-the-shelf button cap, so there's no need to DIY one yourself.

Finally, just secure everything to the handlebars with a zip tie. After testing, it fits perfectly.

Done!
