What Is An Oven Controlled Crystal Oscillator?
With the rapid advancement of technology, the demand for high-precision time references and frequency stability continues to rise. As a high-precision clock source, the Oven Controlled Crystal Oscillator (OCXO) has found widespread use across numerous applications. This article covers the definition, working principle, key characteristics and advantages, applications, and more regarding OCXO.
Catalog
I. What is an Oven Controlled Crystal Oscillator ?
III. Key Characteristics and Advantages
I. What is an Oven Controlled Crystal Oscillator ?

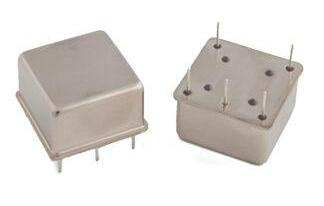

An Oven Controlled Crystal Oscillator (OCXO) is an electronic component that maintains the stability of its frequency by placing the crystal oscillator in a temperature-controlled environment. Compared to traditional crystal oscillators (XO), OCXOs use an internal heating element to maintain a constant temperature for the crystal, eliminating the impact of temperature variations on the oscillation frequency. This results in a more stable and precise frequency output, making OCXOs ideal for applications requiring extremely high-frequency stability.
II. Working Principle
The working principle of an OCXO relies primarily on a heating element and temperature sensors within an insulated oven chamber. The internal crystal oscillator is placed in a temperature-controlled environment to ensure that the crystal operates at a stable working temperature. The temperature is monitored and adjusted in real-time by temperature sensors, keeping the temperature constant and preventing frequency deviations caused by temperature fluctuations. The temperature compensation mechanism within the oven greatly improves the frequency stability of the crystal oscillator.
III. Key Characteristics and Advantages
· Frequency Stability: OCXOs typically offer frequency stability in the range of ±1×10⁻⁷ to ±1×10⁻⁹ (±0.1ppm to ±1ppb), making them ideal for applications that require extremely high-frequency precision.
· Phase Noise: OCXOs exhibit exceptionally low phase noise, particularly at low offset frequencies (e.g., 1Hz or 10Hz), ensuring high signal clarity and stability.
· Power Consumption and Size: Due to the need to maintain a constant temperature environment, OCXOs tend to have higher power consumption, typically ranging from 1.5W to 2.0W. They are also larger in size, with typical dimensions around 25×22×12.1 mm.
IV. Applications
OCXOs are widely used in the following fields:
· Communication Stations: Used to provide high-precision frequency references, ensuring the stable operation of communication systems.
· Smart Grids: In power systems, OCXOs are used for synchronizing clocks and power monitoring systems, providing critical time synchronization and frequency reference functionality.
· Industrial Equipment: OCXOs provide stable frequency sources in precision measurement instruments, radar systems, guidance systems, and other high-precision devices.
· Aerospace and Military: OCXOs are used in satellite communication, navigation systems, radar, and other fields to provide high-precision frequency references, ensuring the reliability and accuracy of these systems.
V. Conclusion
As a high-precision crystal oscillator, OCXO offers exceptional frequency stability, low phase noise, and high reliability, making it widely used across communication, aerospace, and precision measurement applications. With ongoing advancements in technology, the range of OCXO applications is expected to expand further, making it an indispensable component in modern electronic devices.
