What are Programmable Oscillators?
As the demand for electronic products becomes more diversified and intelligent, traditional fixed-frequency crystal oscillators are increasingly unable to meet the requirements for high precision, flexibility, and low power consumption. Programmable Oscillators have emerged to fill this gap, offering excellent frequency adjustment capabilities and high stability. They are now widely used in modern communications, industrial automation, consumer electronics, and more. This article will discuss the definition, working principle, characteristics and advantages, as well as applications of Programmable Oscillators.
Catalog
I. What are Programmable Oscillators?
I. What are Programmable Oscillators?

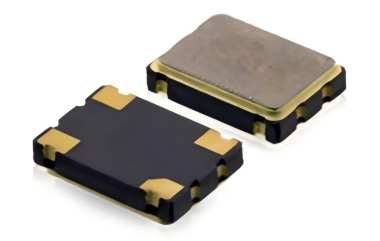

A programmable oscillator is a type of oscillator that allows for adjustments to its output frequency, phase, and other parameters through digital signals or external programming control. Unlike traditional fixed-frequency crystal oscillators, users can dynamically modify the output frequency according to their needs, thus providing precise clock sources for different application scenarios. Programmable oscillators typically integrate frequency modulation circuits and digital control interfaces, allowing designers to quickly and precisely adjust the clock source as required.
Programmable oscillators often use quartz crystal or MEMS (Micro-Electro-Mechanical Systems) technology, with built-in control circuits or digital interfaces enabling frequency adjustment within a certain range. Common adjustment methods include frequency setting via digital communication protocols such as I²C or SPI, or external voltage adjustments.
II. Working Principle
The basic working principle of programmable oscillators is similar to traditional crystal oscillators, relying on the mechanical vibrations of a crystal to produce a stable frequency signal. The main differences lie in the following:
· Frequency Modulation Circuit: Programmable oscillators adjust the output frequency through internal digital modulation circuits (such as variable load capacitors and frequency dividers). Designers can achieve precise frequency adjustment via software or digital interfaces, without needing to change hardware.
· Digital Control Interface: Through digital communication protocols (such as I²C or SPI), the oscillator can be connected to the main controller for real-time reading and setting of the oscillator's output frequency. This allows the oscillator to be adjusted during system operation based on changing demands.
· Temperature and Voltage Compensation: Many high-precision programmable oscillators come with built-in temperature compensation and voltage stabilization circuits to ensure stable and accurate clock signal output under various environmental conditions.
III. Features and Advantages
The key features and advantages of programmable oscillators include:
· High Flexibility: Users can adjust the output frequency through digital control or software programming based on different system requirements, making them adaptable to a wide range of application scenarios.
· High Precision and Stability: Combining quartz or MEMS technology, programmable oscillators provide high-precision frequency output, with built-in compensation mechanisms ensuring stability across various working conditions.
· Low Power Consumption: With the application of MEMS technology, the latest generation of programmable oscillators is compact and energy-efficient, making them ideal for power-sensitive applications like mobile devices and IoT terminals.
· Simplified Design and Integration: The digital interface allows programmable oscillators to be easily integrated with other electronic components (such as microcontrollers and FPGAs), simplifying system design.
· Fast Response and Short Start-Up Time: Compared to traditional crystal oscillators, programmable oscillators typically offer quicker start-up times, enabling them to deliver stable clock signals rapidly.
IV. Applications
Programmable oscillators are used in a variety of fields, including:
· Communications: 5G base stations (requiring high frequency and low phase noise), optical modules (28G/56G SerDes clocking).
· Automotive Electronics: ADAS sensor synchronization, in-vehicle Ethernet (100/1000BASE-T1 clocking).
· Data Centers: Server PCIe Gen5 clocks (156.25 MHz ±50 ppm), high-speed switches.
· Industrial: Industrial IoT (Time-Sensitive Networks - TSN), robotic motion control (PWM synchronization).
V. Conclusion
Programmable oscillators, as high-precision and flexible clock sources, have become a vital component in the global electronics industry. With ongoing technological advancements, particularly in MEMS technology and digital control techniques, future programmable oscillators will be even smarter and more integrated, meeting the increasingly diverse market demands. Whether in communications, automotive electronics, industrial control, or consumer electronics and IoT, programmable oscillators will play an increasingly crucial role, becoming an indispensable core component for future electronic devices.
