MCP9844T-BE/MNY: Features, Specs & More
In today's world of high-tech applications, ensuring accurate temperature measurement is crucial for both industrial and consumer electronics. The Microchip MCP9844T-BE/MNY offers a highly efficient, low-power solution to meet this need. As a digital temperature sensor with a 2-wire I2C interface, the MCP9844T-BE/MNY is widely used across various sectors, including industrial refrigeration, solid-state drives (SSDs), and consumer electronics. In this comprehensive article, we'll delve into the intricacies of the MCP9844T-BE/MNY, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MCP9844T-BE/MNY's Manufacturer
MCP9844T-BE/MNY's Overview
The Microchip MCP9844T-BE/MNY is a digital temperature sensor designed to provide high accuracy and low power consumption. It uses a 2-wire I2C interface, making it a simple and versatile solution for integrating into various devices and systems. With an extended temperature grade, it is suitable for a wide range of applications that demand reliability and precision, even in extreme environments.
Key Features
Let's delve into the standout features that make the MCP9844T-BE/MNY a standout in the world of electronics:
· The MCP9844T-BE/MNY boasts an impressive ±1°C accuracy over its specified temperature range.
· With its 2-wire I2C communication, the sensor simplifies the integration process with microcontrollers and other devices, offering ease of use and flexibility.
· Capable of operating from -40°C to 125°C, the MCP9844T-BE/MNY can handle extreme temperature conditions.
· The device operates with minimal power, consuming a maximum of just 500μA, which is crucial for battery-powered or energy-efficient designs.

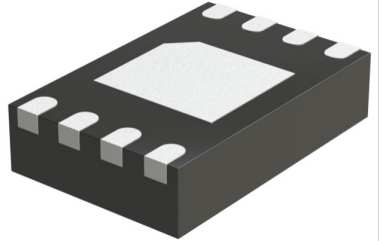

· With an 8-pin TDFN EP (Thin Dual Flat No-lead) package, this sensor is small enough to fit into a variety of applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MCP9844T-BE/MNY:
Type | Parameter |
Module/IC Classification | IC |
Accuracy | ±1°C |
Interface Type | Serial (2-Wire, I2C) |
Output Type | Digital |
Minimum Operating Supply Voltage (V) | 1.7 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Supply Current (uA) | 500 |
Maximum Operating Temperature (°C) | 125 |
Minimum Operating Temperature (°C) | -40 |
Supplier Temperature Grade | Extended |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.73 |
Package Width | 3 |
Package Length | 2 |
PCB changed | 8 |
Standard Package Name | DFN |
Supplier Package | TDFN EP |
Pin Count | 8 |
Lead Shape | No Lead |
Applications
The MCP9844T-BE/MNY is ideal for a variety of applications where precise temperature measurement is essential. Some of the key uses include:
· Temperature Sensing for Solid State Drive (SSD)
· General Purpose Temperature Datalog
· General Purpose
· Industrial Applications
· Industrial Freezers and Refrigerators
· Food Processing
· Personal Computers and Servers
· PC Peripherals
· Consumer Electronics
· Handheld/Portable Devices
MCP9844T-BE/MNY's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
In summary, the Microchip MCP9844T-BE/MNY temperature sensor offers exceptional accuracy, a wide operating range, and a low-power, compact design that is suitable for a variety of applications. Its I2C interface, combined with its extended temperature range, makes it an excellent choice for both industrial and consumer electronics.
