What Is PoE?
With the rapid development of networking technology, the integration of power transmission and data transmission has increasingly become an essential feature for modern devices. Among these technologies, Power over Ethernet (PoE) has gradually become an indispensable part of network devices. PoE allows for the simultaneous transmission of power and data through standard Ethernet cables, providing devices with a stable power supply and high-speed data connections. It is widely used in devices such as surveillance cameras, wireless access points, and IP phones. This article will detail the definition, working principle, characteristics and advantages, and applications of PoE.
Catalog
I. What is PoE?
Power over Ethernet (PoE) is a technology that simultaneously delivers both power and data through Ethernet cables. Traditionally, Ethernet cables were used solely for data transmission, but PoE technology enables power to be transmitted through the same cable, allowing endpoint devices to receive power without needing an additional power supply. This technology significantly simplifies device wiring and reduces installation costs.
II. Working Principle
PoE works based on the IEEE 802.3af and IEEE 802.3at standards, allowing power and data transmission signals to be combined over Ethernet cables. The PoE system consists of two main components: Power Sourcing Equipment (PSE) and Powered Devices (PD).

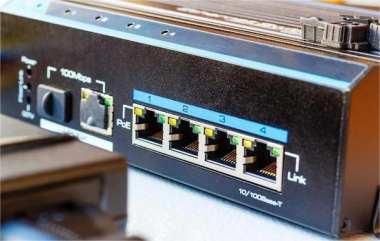

· Power Sourcing Equipment (PSE): This is the device that supplies power, typically a switch or a midspan device.
· Powered Devices (PD): These are the endpoint devices that receive both power and data, such as IP cameras, wireless APs, or IP phones.
When data transmission signals pass through the Ethernet cable, the PSE provides the required power through the cable's twisted pairs. The PD receives power from the cable and uses it for operation. PoE supports not only standard 10/100/1000 Ethernet but also higher-speed Ethernet networks.
III. Features and Advantages
PoE technology offers several unique advantages in practical applications:
· Simplified Wiring: A single Ethernet cable replaces the power line, reducing installation complexity, especially in high or concealed locations.
· Cost-Effectiveness: Saves on power cabling and maintenance costs, shortening project timelines.
· High Flexibility: Devices can be deployed in locations without power outlets (e.g., ceilings, outdoor spaces).
· Safety and Reliability: Complies with IEEE standards and includes overvoltage, overcurrent, and ESD protection.
· Smart Management: Supports remote power control and energy consumption monitoring, promoting green energy-saving solutions.
IV. Applications
PoE technology has been adopted across various industries and scenarios, including:
· Surveillance: PoE cameras do not require separate power supplies, supporting plug-and-play and centralized management.
· Wireless Networking: PoE provides stable power to APs, optimizing Wi-Fi coverage and deployment efficiency.
· Smart Buildings: Powers LED lighting, temperature sensors, and smart access control systems.
· Industrial IoT: Supplies power to sensors, AGVs (Automated Guided Vehicles), and edge computing devices.
· Emerging Fields: Powers 5G micro base stations, digital signage, and telemedicine equipment.
V. Conclusion
Power over Ethernet (PoE) technology is an important innovation in modern network systems. It enables both data and power to be transmitted through a single cable, greatly improving installation convenience and cost efficiency. As more devices rely on network-powered systems, PoE technology will continue to find widespread applications across many industries.
