LT3085EDCB#TRPBF: Features, Specs & More
When designing electronic systems, one of the most crucial components is the Voltage Regulator. The ADI LT3085EDCB#TRPBF is a highly reliable Low Dropout (LDO) Regulator that stands out for its efficiency and flexibility. It's designed to provide precise, stable voltage in a wide range of applications. In this comprehensive article, we'll delve into the intricacies of the LT3085EDCB#TRPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LT3085EDCB#TRPBF's Manufacturer
LT3085EDCB#TRPBF's Overview

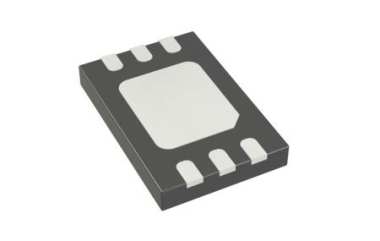

The LT3085EDCB#TRPBF is an LDO voltage regulator from Analog Devices (ADI). This component features an adjustable output voltage, allowing for flexibility in powering various systems. With the ability to output voltages between 0V to 36V, it serves as an efficient power supply for electronics requiring precision regulation.
Designed for a wide range of input voltages (1.2V to 36V), the LT3085EDCB#TRPBF ensures minimal voltage loss with a low dropout voltage of 0.45V at 500mA and 0.15V at 100mA, making it perfect for systems with tight voltage tolerances. Additionally, the 0.5A maximum output current makes it suitable for moderate power applications while maintaining a compact form factor.
Key Features
Let's delve into the standout features that make the LT3085EDCB#TRPBF a standout in the world of electronics:
· The LT3085EDCB#TRPBF provides adjustable output voltages from 0V to 36V, making it adaptable for a wide range of applications.
· With a maximum output current of 0.5A, this LDO regulator can support moderate-power devices while maintaining efficiency.
· Dropout voltages are as low as 0.45V at 500mA and 0.15V at 100mA, which helps reduce power loss and improve system efficiency.
· The accuracy of ±1% ensures precise and stable output voltage, essential for sensitive electronics.
· The maximum quiescent current of just 0.5mA ensures that the regulator consumes minimal power when idle, making it ideal for battery-powered systems.
· Thermal shutdown protection and current limit features are included to safeguard the regulator and the entire circuit from thermal damage and overcurrent situations.
· This regulator operates within an extended temperature range of -40°C to 125°C, making it suitable for harsh environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LT3085EDCB#TRPBF:
Type | Parameter |
Type | LDO |
Number of Outputs | 1 |
Polarity | Positive |
Accuracy (%) | ±1 |
Output Type | Adjustable |
Output Voltage (V) | 0 to 36 |
Maximum Output Current (A) | 0.5 |
Minimum Input Voltage (V) | 1.2 |
Maximum Input Voltage (V) | 36 |
Maximum Dropout Voltage @ Current (V) | 0.45@500mA|0.15@100mA |
Line Regulation | 0.5nA/V |
Load Regulation | -0.1nA(Typ) |
Maximum Quiescent Current (mA) | 0.5 |
Junction to Ambient | 73°C/W |
Junction to Case | 10.6°C/W |
Special Features | Thermal Shutdown Protection|Current Limit |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Extended |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.75(Max) |
Package Width | 3 |
Package Length | 2 |
PCB changed | 6 |
Standard Package Name | DFN |
Supplier Package | DFN EP |
Pin Count | 6 |
Lead Shape | No Lead |
* LT3085EDCB#TRPBF's Datasheet
Applications
The LT3085EDCB#TRPBF LDO Regulator is suitable for a variety of applications that require stable and adjustable voltage regulation:
· High-Current All Surface Mount Supply: Ideal for systems that require a reliable power source in compact designs.
· High-Efficiency Linear Regulator: Ensures high efficiency in linear regulation applications, especially in low-noise systems.
· Post-Regulator for Switching Supplies: Often used to smooth out the output of switching regulators, reducing noise and ripple.
· Low Parts Count Variable Voltage Supply: Perfect for simple, adjustable power supplies with minimal component requirements.
· Low Output Voltage Power Supplies: Can efficiently supply low voltage systems with minimal power loss and heat generation.
LT3085EDCB#TRPBF's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI LT3085EDCB#TRPBF LDO Regulator is a versatile, efficient, and reliable component ideal for a wide range of electronic applications. Its adjustable output, low dropout voltage, and high accuracy make it a top choice for designs that require precise voltage regulation. With features like thermal shutdown protection, current limit functionality, and a broad operating temperature range, this LDO is designed for both high performance and safety.
