MAX3045BEWE+T: Features, Specs & More
In today's rapidly evolving technological landscape, reliable communication is key for any electronic system, especially when it comes to data transmission over long distances or harsh environments. The ADI MAX3045BEWE+T stands out as an excellent choice for applications that require robust, high-performance transmission. In this comprehensive article, we'll delve into the intricacies of the MAX3045BEWE+T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MAX3045BEWE+T's Overview

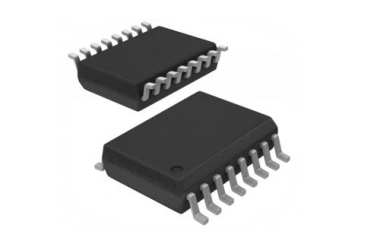

The ADI MAX3045BEWE+T is a 16-pin SOIC-W quad transmitter that supports differential signaling, which is vital for high-speed communication in multi-point and multipoint transmission topologies. Its ability to drive up to 32 receivers per line in RS-485 mode and 1 receiver per line in RS-422 mode makes it incredibly versatile, especially for industrial, networking, and telecommunications applications.
Key Features
Let's delve into the standout features that make the MAX3045BEWE+T a standout in the world of electronics:
· The MAX3045BEWE+T supports a data rate of 20 Mbps, making it ideal for high-speed communications where timely data exchange is crucial.
· This transmitter supports both RS-422 and RS-485 standards, offering versatility for different network setups, from point-to-point to multipoint configurations.
· Operating on a single power supply with a voltage range from 4.75V to 5.25V, the MAX3045BEWE+T ensures energy efficiency while providing optimal performance.
· Its low power consumption (max current of 2mA) is another advantage, especially for energy-sensitive applications.
· It can drive 32 receivers in RS-485 mode and features a 3-state driving mode, offering flexibility for multiple transmitters on the same communication line.
· With an operating temperature range from -40°C to 85°C, the MAX3045BEWE+T is designed to withstand a variety of environmental conditions.
· The 16-pin SOIC W package ensures a compact footprint, and the component is surface-mountable for easy integration into your designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MAX3045BEWE+T:
Type | Parameter |
Function | Line Transmitter |
Data Rate | 20Mbps(Min) |
Transmitter Communication Type | RS-422|RS-485 |
Interface Standards | RS-422|RS-485 |
Data Transmission Topology | Multidrop|Multipoint |
Number of Transmitters | 4 |
Transmitter Signal Type | Differential |
Number of Drivers per Line | 1@RS-422|32@RS-485 |
Driving Mode | 3-State |
Number of Transmitter Enables | 2 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Power Supply Type | Single |
Minimum Single Supply Voltage (V) | 4.75 |
Typical Single Supply Voltage (V) | 5 |
Maximum Single Supply Voltage (V) | 5.25 |
Maximum Supply Current (mA) | 2 |
Supplier Temperature Grade | Extended |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 2.35(Max) |
Package Width | 7.6(Max) |
Package Length | 10.5(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC W |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The MAX3045BEWE+T is designed for a wide array of applications where robust and efficient data transmission is essential. Some of its primary applications include:
· Telecommunications Equipment: Ideal for long-distance communication, ensuring data integrity over extensive wiring networks.
· Industrial Motor Control: Used in motor control systems where reliable data transmission is crucial for operations.
· Hand-Held Equipment: Perfect for devices that require a low-power, reliable communication interface, such as mobile scanners and portable testing devices.
· Industrial PLCs (Programmable Logic Controllers): Ensures smooth communication between various industrial devices and PLC systems.
· Networking: Enhances network infrastructure by supporting high-speed communication and robust signal integrity.
MAX3045BEWE+T's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI MAX3045BEWE+T is a versatile, high-performance quad transmitter designed for reliable RS-422/RS-485 communication in a wide range of applications. With its low power consumption, extended temperature range, and support for multidrop and multipoint configurations, the MAX3045BEWE+T is an ideal choice for industries that require robust data transmission.
