MAX3094ECSE+T: Features, Specs & More
In the world of modern electronics, efficient data communication systems are essential for a wide range of applications, from telecommunications to industrial control. One such critical component is the ADI MAX3094ECSE+T, a quad receiver that plays a vital role in ensuring reliable data transfer in multipoint and multidrop communication systems. In this comprehensive article, we'll delve into the intricacies of the MAX3094ECSE+T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MAX3094ECSE+T's Overview

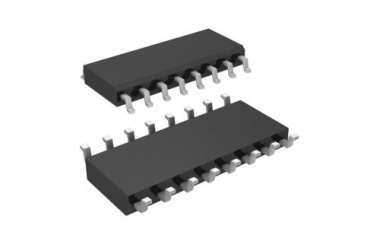

The ADI MAX3094ECSE+T is a high-performance line receiver designed for RS-422 and RS-485 communication standards. It comes in a 16-pin SOIC N package and is engineered for systems that require differential data transmission. With its ability to operate over long distances, the MAX3094ECSE+T ensures robust communication even in electrically noisy environments.
Key Features
Let's delve into the standout features that make the MAX3094ECSE+T a standout in the world of electronics:
· The MAX3094ECSE+T integrates four receivers in a single chip, making it an ideal choice for compact, multi-channel data communication systems.
· Capable of handling data transmission speeds of up to 10Mbps, it supports fast data transfer without compromising reliability.
· Fully compliant with both RS-422 and RS-485, it ensures compatibility with a variety of industrial communication protocols.
· The receiver uses differential signaling, which minimizes noise and ensures clear communication even in electrically noisy environments.
· The MAX3094ECSE+T supports multipoint and multidrop communication, allowing for flexible and scalable network designs.
· With a maximum supply current of just 4mA, it is power-efficient, making it suitable for battery-powered devices or energy-conscious systems.
· This receiver operates effectively within a temperature range of 0°C to 70°C, which suits many commercial and industrial environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MAX3094ECSE+T:
Type | Parameter |
Function | Line Receiver |
Data Rate | 10Mbps(Min) |
Receiver Communication Type | RS-422|RS-485 |
Interface Standards | RS-422|RS-485 |
Data Transmission Topology | Multipoint|Multidrop |
Number of Receivers | 4 |
Receiver Signal Type | Differential |
Number of Receivers per Line | 128@RS-485|10@RS-422 |
Driving Mode | 3-State |
Number of Receiver Enables | 1 |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 70 |
Power Supply Type | Single |
Minimum Single Supply Voltage (V) | 3 |
Typical Single Supply Voltage (V) | 3.3 |
Maximum Single Supply Voltage (V) | 3.6 |
Maximum Supply Current (mA) | 4 |
Supplier Temperature Grade | Commercial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.37 |
Package Width | 3.9 |
Package Length | 9.9 |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC N |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The ADI MAX3094ECSE+T's versatility makes it suitable for a wide range of applications, including:
· Telecommunications Equipment: Used in telecom systems to manage data communication over long distances, ensuring high reliability in data transfer.
· Rugged RS-422/RS-485/RS-423 Bus Systems: Ideal for harsh environments, the receiver can be integrated into rugged communication bus systems for industrial automation and control.
· ESD-Sensitive Applications: Its robust design helps protect against electrostatic discharge (ESD), making it a perfect solution for environments where sensitive equipment needs protection.
· Level Translators: It can also function as a level translator for systems that require different voltage levels for communication.
MAX3094ECSE+T's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI MAX3094ECSE+T is a powerful and reliable quad receiver designed for differential data communication in both RS-422 and RS-485 systems. Its low power consumption, wide temperature range, and robust features make it an excellent choice for telecom, industrial, and rugged applications.
