What Is A Programmable Power Supply?
As electronic technology continues to evolve, traditional power supplies are no longer sufficient to meet the growing complexity of modern devices, especially in research, testing, and manufacturing. The Programmable Power Supply (PPS), with its flexible output adjustment, high-precision control, and intelligent features, has become an essential tool in the electronics industry. This article provides an in-depth look at programmable power supplies, including their definition, working principles, key features, advantages, and applications.
Catalog
I. What Is a Programmable Power Supply?
III. Key Features and Advantages
I. What Is a Programmable Power Supply?

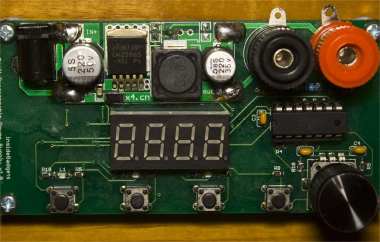

A Programmable Power Supply is a digitally controlled device that allows users to set and dynamically adjust output voltage, current, and frequency in real time. Unlike traditional power supplies that provide fixed voltage or current, a PPS enables flexible adjustments to meet specific testing requirements. These power supplies are typically equipped with digital interfaces such as USB and LAN, allowing users to control and monitor them via computer software, perform remote operations, and log data for analysis.
II. Work Principle
The working principle of a programmable power supply is based on a digital control system, which operates through the following steps:
· Parameter Setting: Users input the required voltage, current, and other parameters via the device interface or computer software.
· Digital Signal Adjustment: A built-in microprocessor or digital signal controller generates control signals, which are converted via Digital-to-Analog Conversion (DAC) to regulate the output voltage or current.
· Real-Time Feedback Control: Sensors continuously monitor the output voltage and current, feeding data back to the control loop for real-time adjustments, ensuring precise and stable output.
· Protection Mechanisms: Most programmable power supplies include multiple safety features such as overvoltage, overcurrent, and short-circuit protection to safeguard both the device and the test samples.
III. Key Features and Advantages
1. High Precision and Stability
· Voltage accuracy up to ±0.1%, current accuracy ±0.2%, and ripple noise as low as millivolts.
· Digital feedback and temperature compensation technologies ensure long-term operational stability.
2. Wide Adjustment Range
· DC power supplies support continuous voltage adjustments from 0-1000V and current from 0-100A.
· AC power supplies offer adjustable frequencies ranging from 1Hz to 5kHz, covering industrial and research applications.
3. Advanced Protection Mechanisms
· Built-in overvoltage, overcurrent, short-circuit, and over-temperature protection.
· Some models feature automatic shutdown or current-limiting modes to enhance safety.
4. Smart Features and Compatibility
· Supports software integration with LabVIEW, Python, and other automation tools for seamless automated testing.
· Offers multiple operation modes such as Constant Voltage (CV), Constant Current (CC), and Constant Power (CP) for diverse applications.
5. Energy Efficiency
· Switching power supply efficiency exceeds 90% (80 PLUS Gold/Platinum certification), reducing energy loss.
· Some models support intelligent fan control and ECO mode, minimizing power consumption and noise.
IV. Applications
Thanks to their high flexibility and precision, programmable power supplies are widely used in various fields:
· Electronics R&D and Testing: Used for battery charging/discharging simulation, PCB voltage endurance testing, and IC power consumption analysis.
· Industrial Automation: Provides stable power for robotics, CNC machines, and automotive production lines to simulate vehicle electrical system fluctuations.
· Automotive Electronics: Plays a critical role in testing ECUs (Electronic Control Units) and Battery Management Systems (BMS) to ensure the reliability and safety of automotive electronics.
· Medical Equipment: Supplies clean power for MRI, CT scanners, and other precision medical instruments, reducing electromagnetic interference.
V. Conclusion
As a vital component in modern electronics, programmable power supplies offer high precision, flexibility, and intelligent features, making them indispensable in research, testing, and manufacturing. With the ongoing advancement of technology and the increasing complexity of market demands, programmable power supplies will continue to play a crucial role in more industries. For manufacturers, continuous innovation and product optimization will be the key to maintaining a competitive edge.
