What Is An Open Frame Power Supply?
In modern electronic devices, the performance of power modules directly influences the overall stability and efficiency of the system. Open Frame Power Supplies, designed with an open-frame architecture, offer high energy conversion efficiency, flexible installation options, and excellent heat dissipation. These characteristics have made them a preferred choice across various industries, including industrial control, communication equipment, medical devices, and LED lighting. This article will provide a detailed overview of Open Frame Power Supplies, covering their definition, working principles, features and advantages, applications, and more.
Catalog
I. What is an Open Frame Power Supply?
I. What is an Open Frame Power Supply?

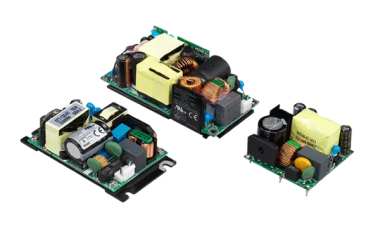

An Open Frame Power Supply is a power module designed with an open-frame structure. Unlike traditional enclosed power supplies, Open Frame Power Supplies lack a metal or plastic casing and are typically mounted directly onto a printed circuit board (PCB) via soldering or screws. This open-frame design reduces size and weight while enhancing heat dissipation, making it particularly suitable for devices with limited space or demanding thermal management requirements.
II. Working Principle
Open Frame Power Supplies typically utilize switching power supply technology to convert incoming AC (Alternating Current) into stable DC (Direct Current). The working process involves several steps:
· Input Rectification and Filtering: The incoming AC power is converted to DC through a rectifier circuit. Filters are then used to eliminate high-frequency noise and ripple from the power supply.
· High-Frequency Switching Regulation: Switching devices like MOSFETs are controlled through Pulse Width Modulation (PWM) technology to achieve efficient energy conversion and regulation.
· Voltage Transformation and Rectification: The high-frequency AC is converted to the desired DC voltage, which is then finely adjusted to meet specific output requirements.
· Feedback and Protection Circuits: Feedback mechanisms continuously monitor output voltage and current to maintain stability. Additionally, protection features such as over-voltage, over-current, and over-temperature safeguards are implemented to ensure safe operation.
III. Features and Advantages
Compared to traditional enclosed power supplies, Open Frame Power Supplies offer several notable features and advantages:
· High Power Density & Compact Design: The open-frame structure eliminates the need for an external casing, reducing both size and weight. This compact design is ideal for applications where space is limited.
· Superior Heat Dissipation: Without an external enclosure, Open Frame Power Supplies can dissipate heat more efficiently to the surrounding environment. This enhances thermal management, reducing the risk of overheating and improving operational stability.
· High Energy Conversion Efficiency: Leveraging advanced switching power supply technology, Open Frame Power Supplies deliver higher energy conversion efficiency and reduced power loss—particularly beneficial for high-power applications.
· Flexibility & Adaptability: These power supplies can be integrated into various electronic systems in a modular fashion. They can also be customized to meet specific application requirements, providing excellent adaptability.
· Comprehensive Protection Mechanisms: Modern Open Frame Power Supplies are equipped with multiple protection features, including over-voltage, over-current, short-circuit, and over-temperature protection. These mechanisms ensure safe operation under abnormal conditions.
IV. Applications
The unique features of Open Frame Power Supplies make them suitable for a wide range of applications, including:
· Industrial Automation: Widely used in PLCs, servo drives, and sensors, providing reliable power supply solutions that meet high interference resistance and wide temperature range requirements.
· Medical Devices: Essential for monitoring systems, diagnostic imaging devices, and other medical equipment, adhering to stringent safety standards with low leakage current and medical-grade isolation.
· Communication Infrastructure: Powering base stations, routers, and network switches with high-density installation support and remote management capabilities.
· Consumer Electronics: Providing compact power solutions for embedded systems, smart home devices, and other consumer electronics.
V. Conclusion
As a crucial power module in modern electronic devices, the Open Frame Power Supply excels with its high-efficiency energy conversion, open-frame structure, and flexible installation. It has established an irreplaceable role across various sectors, including industrial automation, medical devices, communication systems, and consumer electronics. Moving forward, as technology continues to advance and market demands evolve, Open Frame Power Supplies are expected to demonstrate even greater advantages in emerging applications.
