CL-SB-12A-01: Features, Specs & More
When it comes to designing precision electronic devices, choosing the right switch can make all the difference. One such reliable and efficient switch is the Copal Electronics (Nidec Copal Electronics) CL-SB-12A-01. In this comprehensive article, we'll delve into the intricacies of the CL-SB-12A-01, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
CL-SB-12A-01's Overview

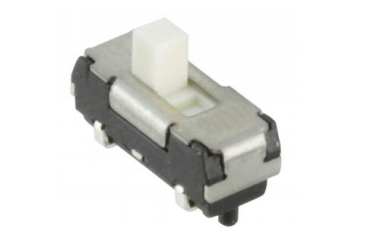

The CL-SB-12A-01 is a surface-mount slide switch featuring a top slide actuator with a length of 2mm. It operates with an ON-ON switching mechanism, allowing users to toggle between two separate circuits within a single device. Its construction ensures robustness, with a body made from Polyphenylene Sulphide (PPS) for enhanced strength and thermal resistance.
Key Features
Let's delve into the standout features that make the CL-SB-12A-01 a standout in the world of electronics:
· With a body length of 8.5mm, depth of 3.5mm, and height of 3.5mm, this switch is ideal for space-constrained applications.
· It provides two distinct ON positions, making it versatile for various switching needs.
· High Durability: Electrical life of up to 10,000 cycles ensures long-term performance.
· It operates efficiently between -40°C and 85°C, making it suitable for various environmental conditions.
· The J-Bend SMD configuration ensures a secure connection and simplifies the mounting process.
· The Maximum contact resistance of 50 mΩ ensures consistent performance.
· It's rated at 500 VAC, ensuring reliable operation under various conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the CL-SB-12A-01:
Type | Parameter |
Actuator Style | Top Slide |
Pole Throw Configuration | SPDT |
Switch Configuration | ON ON |
Maximum Current Rating (A) | 0.2@12VDC |
Dielectric Strength | 500VAC |
Minimum Insulation Resistance (MOhm) | 100 |
Maximum Contact Resistance (MOhm) | 50 |
Electrical Life (Cycles) | 10000 |
Actuator Length (mm) | 2 |
Mounting | Surface Mount |
Termination Style | J-Bend |
Number of Terminals | 3 |
Terminal Length (mm) | 1 |
Housing Material | Polyphenylene Sulphide |
Body Orientation | Straight |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Bulk |
Body Length (mm) | 8.5 |
Body Depth (mm) | 3.5 |
Body Height (mm) | 3.5 |
Product Weight (g) | 0.21 |
Product Length (mm) | 8.5 |
Product Depth (mm) | 3.5 |
Product Height (mm) | 5.5 |
Applications
The Copal Electronics CL-SB-12A-01 is a versatile component commonly used in various electronic applications, including:
· Consumer Electronics: Suitable for devices requiring precise, low-power switching.
· Industrial Control Systems: Ideal for control panels and interfaces demanding robust durability.
· Automotive Electronics: With its wide operating temperature range, it excels in automotive systems.
· Communication Devices: Ensures reliable switching in communication hardware.
· Wearable Technology: Compact size makes it suitable for space-constrained designs.
CL-SB-12A-01's Manufacturer
Nidec Copal Electronics, founded in 1967 and a subsidiary of Nidec Corporation, is a global supplier to the telecommunications, computer, industrial, medical, and semiconductor equipment markets. Products designed and manufactured for these markets include trimmer and precision potentiometers, switches, optical encoders, and DC fans. Copal has also expanded its new product development activity into areas including silicon pressure sensors, polygon laser scanners, DC turbo fans, and thermal variable attenuators. On April 1st, 2023, its English name was changed from “Nidec Copal Electronics Corporation” to “Nidec Components Corporation” to bear the Nidec Group's brand name.
Conclusion
In summary, the Copal Electronics CL-SB-12A-01 is a dependable and efficient slide switch that offers both durability and performance. Its thoughtful design and high-quality materials make it a valuable component for various electronic applications, from consumer devices to industrial equipment. With its high insulation resistance, low contact resistance, and long electrical life, this switch meets the needs of engineers looking for reliability and longevity.
