ADSP-BF504BCPZ-4: Features, Specs & More
In the rapidly evolving world of digital signal processing (DSP), the ADSP-BF504BCPZ-4 from Analog Devices stands out as a high-performance solution tailored for a variety of industrial and consumer applications. This DSP unit, part of the ADSP-BF50x family, offers exceptional processing capabilities, making it a go-to choice for engineers looking to optimize performance in systems requiring fixed-point computation. In this comprehensive article, we'll delve into the intricacies of the ADSP-BF504BCPZ-4, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADSP-BF504BCPZ-4's Manufacturer
ADSP-BF504BCPZ-4's Overview

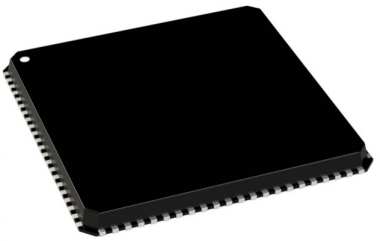

The ADSP-BF504BCPZ-4 is a fixed-point DSP that operates at speeds up to 400 MHz. It's designed to meet the demands of industrial applications where high precision and real-time processing are crucial. With a powerful 16-bit/32-bit architecture, this processor can handle complex tasks in areas such as audio processing, motor control, and signal analysis, offering enhanced performance for embedded systems.
Key Features
Let's delve into the standout features that make the ADSP-BF504BCPZ-4 a standout in the world of electronics:
· This allows for precise calculations with a focus on efficiency, ideal for embedded systems that require fast, reliable computation.
· This high-speed operation ensures rapid data processing, making the ADSP-BF504BCPZ-4 ideal for time-sensitive applications.
· The processor comes equipped with 4MB of onboard flash memory, providing ample storage for code execution and data handling.
· Sufficient memory capacity allows for efficient program execution and data management during processing.
· Featuring 35 I/O pins, the ADSP-BF504BCPZ-4 supports communication protocols like I2C, SPI, and UART, ensuring versatility in interfacing with different systems.
· The processor integrates a 12-bit ADC with 12 input channels, enabling high-resolution signal conversion directly within the device.
· With an operating temperature range from -40°C to 85°C, this DSP is suited for harsh industrial environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADSP-BF504BCPZ-4:
Type | Parameter |
Family Name | ADSP-BF50x |
Instruction Set Architecture | Modified Harvard |
Numeric and Arithmetic Format | Fixed-Point |
Data Bus Width (bit) | 16|32 |
Program Memory Type | Flash |
Program Memory Size | 4MB |
RAM Size | 68KB |
Programmability | No |
Interface Type | I2C/SPI/UART |
Number of I/Os | 35 |
Number of ADCs | 1 |
ADC Channels | 12 |
ADC Resolution (bit) | 12 |
Device Input Clock Speed (MHz) | 400 |
USART | 0 |
UART | 2 |
USB | 0 |
SPI | 2 |
I2C | 0 |
I2S | 0 |
CAN | 0 |
Ethernet | 0 |
Minimum Operating Supply Voltage (V) | 1.14|1.7|2.25|2.7 |
Typical Operating Supply Voltage (V) | 1.8|2.5|3.3 |
Maximum Operating Supply Voltage (V) | 1.47|1.9|2.75|3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 0.78 |
Package Width | 12 |
Package Length | 12 |
PCB changed | 88 |
Standard Package Name | CSP |
Supplier Package | LFCSP EP |
Pin Count | 88 |
Lead Shape | No Lead |
* ADSP-BF504BCPZ-4's Datasheet
Applications
Due to its powerful processing capabilities and versatile I/O features, the ADSP-BF504BCPZ-4 is used in a wide range of applications:
· Audio Processing: The fixed-point capabilities and high clock speed make it ideal for real-time audio processing in consumer electronics and communication devices.
· Motor Control: With its precise processing and ADC capabilities, the ADSP-BF504BCPZ-4 is an excellent choice for motor control in industrial automation.
· Signal Processing: From medical instrumentation to radar systems, this DSP’s ability to handle complex signal processing tasks makes it a versatile component in high-tech systems.
· Embedded Systems: Whether used in automotive, industrial, or consumer applications, the ADSP-BF504BCPZ-4 is a solid choice for embedded systems that require efficient, reliable performance.
ADSP-BF504BCPZ-4's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADSP-BF504BCPZ-4 is a highly efficient, powerful DSP solution for a range of industrial and embedded applications. With its high-speed processing, versatile I/O options, and industrial-grade features, it offers a robust foundation for systems that require precise, real-time computation.
