What Are USB Connectors?
In modern electronic devices, USB connectors play a crucial role. From computers and smartphones to smart home devices and industrial automation systems, USB connectors are virtually everywhere. As the demand for data transfer continues to rise, USB interfaces have evolved into the global standard for interconnectivity across electronic devices. USB connectors not only offer consumers a fast and convenient connection method but also drive the efficiency, stability, and intelligence of electronic products. In this article, we’ll explore the definition, working principles, features, advantages, and applications of USB connectors in detail.
Catalog
II. How Do USB Connectors Work?
III. Key Features & Advantages
I. What Are USB Connectors?
USB (Universal Serial Bus) connectors are standardized interfaces used for data transmission and power supply between electronic devices. Each USB connector consists of a plug and a receptacle, enabling the transfer of electrical signals and power through multiple internal wires. The physical structure includes metallic contact points for conductivity and an insulated plastic housing for safety. USB connectors strictly follow protocol standards and come in various types:
· Type-A: The classic rectangular design, commonly used in computers and peripherals.

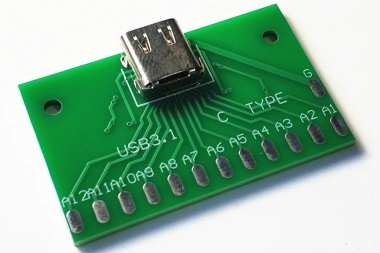

· Type-C: A reversible plug design that supports high-speed USB4 data transfer and up to 240W of power delivery (USB PD 3.1).
· Micro-USB: Once dominant in mobile devices, now gradually replaced by Type-C.
II. How Do USB Connectors Work?
USB connectors operate using differential signaling (via D+ and D– pins) for data communication, alongside power lines (Vbus and GND) for electricity delivery. The process generally involves three stages:
· Device Detection: When a device is plugged in, the host initiates a handshake protocol to identify the type of device.
· Protocol Negotiation: Based on the USB version (e.g., USB 3.2 or USB4) and power requirements (e.g., USB PD), bandwidth and power are dynamically allocated.
· Data Transfer & Charging: A controller chip manages data packets and power flow to ensure efficient and safe operation.
III. Key Features & Advantages
The widespread adoption of USB connectors is largely due to their unique design and numerous benefits:
· Plug-and-Play: No need for drivers; supports hot-swapping.
· High-Speed Transfer: USB4 offers theoretical speeds up to 40Gbps—capable of supporting 8K video or high-speed storage.
· Powerful Charging: USB PD 3.1 supports outputs up to 48V/5A, meeting the power needs of gaming laptops and even electric tools.
· Durability & Compatibility: Type-C connectors withstand up to 10,000 plug-in cycles and are backward compatible with previous USB standards.
IV. Applications
USB connectors are widely used across multiple sectors. Here are some of their key applications:
· Consumer Electronics: Smartphones adopting Type-C for unified charging; laptops using single USB-C ports for display output and charging.
· Industrial Automation: IP67-rated waterproof USB connectors used for communication between PLCs and sensors.
· Automotive Electronics: In-vehicle infotainment systems using USB for data transfer and firmware updates.
· Medical Equipment: EMI-shielded USB connectors for use in portable diagnostic devices.
· IoT (Internet of Things): Compact USB modules enabling low-power connectivity for smart home devices.
V. Conclusion
USB connectors hold a vital position in the electronic components industry. Their high-speed data transmission, powerful charging capabilities, and standardized design have made them an indispensable part of modern electronics. As technology continues to advance, USB connectors will expand into even more fields, driving innovation and enabling intelligent, interconnected systems. Whether in consumer electronics, industrial automation, healthcare, or automotive technology, USB connectors will remain a foundational technology supporting ongoing development.
