What are RJ45 Connectors?
In today's world of information technology, RJ45 connectors are undoubtedly an indispensable core component for building wired network systems. Whether it's for home routers, enterprise switches, industrial automation equipment, or data center servers, RJ45 connectors are everywhere. They play a crucial role in ensuring stable and efficient data transmission and are the preferred physical interface for Gigabit Ethernet and higher-speed communications. This article will cover the topics of "What are RJ45 connectors?", "Types of RJ45 connectors," "How RJ45 connectors work," and "Typical applications."
Catalog
IV. Key Features and Advantages
I. What are RJ45 Connectors?
An RJ45 connector is a standardized network interface primarily used for data transmission in twisted pair Ethernet networks. The "RJ" in its name stands for "Registered Jack," while the "45" refers to its number. The connector features an 8-position, 8-contact (8P8C) structure, meaning the plug and socket each have 8 metal contacts used to connect network signal lines.
Originally derived from the telephone communication interface standard, RJ45 connectors are now widely used in Local Area Networks (LANs) and are the default connector for Ethernet cables such as Cat5e and Cat6.

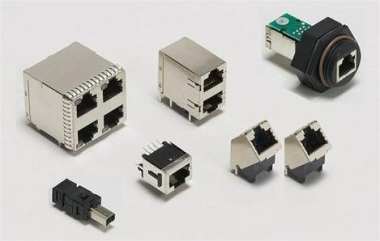

II. Types of RJ45 Connectors
RJ45 connectors can be categorized into several types based on usage environment, functional requirements, and electrical performance:
1. By Shielding Type:
· Unshielded RJ45 (UTP): Commonly used in homes and general office settings, it is low-cost and adaptable.
· Shielded RJ45 (STP/FTP/SFTP): Designed to withstand electromagnetic interference (EMI), suitable for industrial, hospital, and data center environments.
2. By Installation Type:
· PCB Mount (PCB Jack): Used in embedded circuit boards such as network modules and routers.
· Panel Mount (with Flange/Clip): Suitable for installation on racks, walls, or industrial equipment panels.
· Field-installable: Quick, tool-free crimp or snap-in designs, ideal for on-site installations or replacements.
3. By Network Standard:
· Cat5e RJ45: Supports speeds of up to 1Gbps, suitable for typical office networks.
· Cat6/Cat6A RJ45: Suitable for high-speed networks (up to 10Gbps).
· Cat8 RJ45: Used in data centers, supporting speeds of up to 40Gbps.
III. Work Principles
An RJ45 connector consists of a plug and a socket. The eight metal contacts on the plug make tight contact with the corresponding contacts in the socket via metal spring clips, ensuring electrical continuity. During data transmission, pairs of twisted wires are assigned to specific signal pairs such as TX+/TX-, RX+/RX-, in a standard sequence, allowing for high-speed differential signal transmission.
IV. Key Features and Advantages
· Multifunctional Integration: Some modules integrate PoE magnets and filters, enabling both power and data transmission through a single connection.
· High Reliability: Gold-plated contacts, a snap-in design, and a high insertion/removal lifespan (up to 750 times) ensure long-term stability.
· Electromagnetic Compatibility (EMC): Shielded versions significantly reduce EMI/RFI interference, enhancing signal integrity.
· Wide Temperature Range: Industrial-grade products support a temperature range from -40°C to +85°C, making them suitable for harsh environments.
V. Applications
RJ45 connectors are widely used in Local Area Networks (LANs), data centers, industrial Ethernet, and Power over Ethernet (PoE) applications. They are an essential part of modern network infrastructure.
In industrial environments, industrial-grade RJ45 connectors support wide temperature ranges from -40°C to +85°C, integrating magnets and over-voltage protection to ensure system reliability.
VI. Conclusion
Despite their small size, RJ45 connectors play a pivotal role in global network communications. From home networks to high-reliability data centers and industrial communication environments, RJ45 connectors remain the dominant choice for network interfaces due to their high performance, broad compatibility, and versatility.
