RFS0J101MCN1GS: Features, Specs & More
In today's world of compact electronics and demanding power applications, the need for high-performance capacitors that deliver both reliability and efficiency has never been greater. That’s where the Nichicon RFS0J101MCN1GS steps in. In this comprehensive article, we'll delve into the intricacies of the RFS0J101MCN1GS, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
RFS0J101MCN1GS's Overview

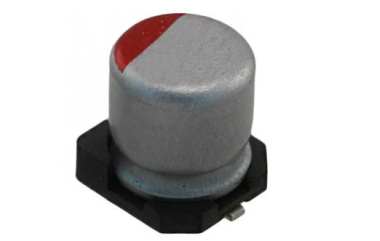

The Nichicon RFS0J101MCN1GS is a surface-mount aluminum polymer capacitor with a capacitance value of 100μF, rated at 6.3VDC, and designed to deliver excellent low ESR performance in a small footprint. Engineered with a polymer electrolyte, this component stands out for its low impedance and excellent ripple current capability, making it ideal for high-efficiency DC-DC converters and voltage regulators.
Its compact 5mm x 5.7mm cylindrical form makes it perfect for densely packed PCBs, where space savings and performance are both key.
Key Features
Let's delve into the standout features that make the RFS0J101MCN1GS a standout in the world of electronics:
· The capacitance is rated at 100 microfarads with a tolerance of ±20%.
· It supports up to 6.3V DC and offers stable performance under dynamic voltage conditions.
· The ESR is as low as 0.024 Ohm, minimizing power loss and heat generation.
· Ripple current rating reaches up to 2.5A, allowing high-frequency performance.
· The capacitor is built for 2000 hours of operation at 105°C, offering durability.
· Surface-mount design with a compact 5mm diameter and 5.7mm height.
· It operates reliably in extreme temperatures ranging from -55°C to 105°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the RFS0J101MCN1GS:
Types | Parameter |
Type | Polymer |
Capacitance Value | 100uF |
Tolerance | 20% |
Voltage | 6.3VDC |
ESR (Ohm) | 0.024 |
Equivalent Series Resistance Type | Low |
IR (mA) | 2.5 |
IL (uA) | 300@2Min |
Lifetime (H) | 2000 |
Polarity | Polar |
Construction | Cylindrical |
Mounting | Surface Mount |
Number of Terminals | 2 |
Size (mm) | 5 X 5.7 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tape and Reel |
Product Diameter (mm) | 5 |
Product Height (mm) | 5.7 |
Applications
The RFS0J101MCN1GS is built for demanding applications where stable power delivery, thermal endurance, and size efficiency are essential. Common use cases include:
· DC-DC Converters
· Motherboards and Graphics Cards
· Telecommunication Equipment
· LED Drivers and Lighting Circuits
· SSD and HDD Controllers
· Power Management Modules
RFS0J101MCN1GS's Manufacturer
Nichicon Corporation is a manufacturer of capacitors of various types, and is one of the largest manufacturers of capacitors in the world. In 1950, it separated from the Nii Works Co., established itself as Kansai-Nii Works and completed its first factory by 1956. Since its founding in 1950, Nichicon has constantly been involved in the development, production and sales of capacitors and circuit products that are essential for many types of electric and electronic products. Currently, they are developing circuit products and complex parts. They are running three core businesses: aluminum electrolytic capacitors, film capacitors and circuit products.
Conclusion
The Nichicon RFS0J101MCN1GS aluminum polymer capacitor is a compelling option for designers seeking a balance of high capacitance, low ESR, and compact size. Whether you’re working on consumer devices, industrial hardware, or next-gen computing systems, this capacitor offers the performance and reliability your design demands.
