10TPE220ML: Features, Specs & More
When it comes to enhancing the reliability and performance of electronic devices, choosing the right capacitor is crucial. The PANASONIC 10TPE220ML is a high-performance polymer capacitor designed for a variety of applications. With a capacitance value of 220uF and a voltage rating of 10VDC, this component offers exceptional performance in modern electronics. In this comprehensive article, we'll delve into the intricacies of the 10TPE220ML, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
10TPE220ML's Overview

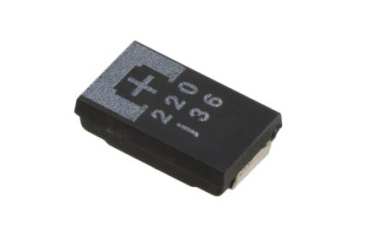

The PANASONIC 10TPE220ML is a surface-mount, low ESR (Equivalent Series Resistance) capacitor designed to meet the increasing demand for efficient and compact electronic components. This polymer capacitor offers a 220uF capacitance with a 10VDC voltage rating, ideal for high-frequency applications where space and performance are key. It is housed in the D3L case style (7343), ensuring it fits well within tight spaces without compromising performance.
Key Features
Let's delve into the standout features that make the 10TPE220ML a standout in the world of electronics:
· The low ESR (0.025 Ohms) of the 10TPE220ML ensures minimal power loss, which enhances the overall efficiency of the device.
· Operating within a temperature range of -55°C to 105°C, this capacitor is designed to perform reliably under extreme temperature variations.
· With a 220uF capacitance and 10VDC voltage rating, the 10TPE220ML offers substantial capacitance to handle high charge storage.
· The D3L case style with dimensions of 7.3mm x 4.3mm x 2.8mm provides a compact footprint, allowing for easier integration into space-constrained designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the 10TPE220ML:
Types | Parameter |
Type | Polymer |
Capacitance Value | 220uF |
Tolerance | 20% |
Voltage | 10VDC |
ESR (Ohm) | 0.025 |
Equivalent Series Resistance Type | Low |
IR (mA) | 2.4 |
IL (uA) | 220 |
Polarity | Polar |
Maximum Dissipation Factor (%) | 10 |
Special Features | Low ESR |
Fail Safe with Built-in Fuse | No |
High Shock and Vibrating | No |
Case Code | D3L |
Case Style | Molded |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Inward L |
Number of Terminals | 2 |
Size (mm) | 7.3 X 4.3 X 2.8 |
Package/Case | 7343 |
Temperature Range @ Derated Voltage (°C) | 85 to 105 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tape and Reel |
Product Length (mm) | 7.3 |
Product Depth (mm) | 4.3 |
Product Height (mm) | 2.8 |
Applications
The PANASONIC 10TPE220ML is designed for use in a wide range of applications, including:
· Consumer Electronics: Ideal for use in devices like laptops, smartphones, and portable chargers.
· Automotive Electronics: Helps enhance the performance and reliability of automotive systems.
· Industrial Equipment: Provides stability in high-power industrial machinery and systems.
· Power Supply Units: Crucial for smoothing out voltage and reducing ripple in DC power supplies.
10TPE220ML's Manufacturer
Founded in 1918, Panasonic Corporation has established itself as an industry titan in the electronic components sector. With a rich history spanning over a century, Panasonic has been at the forefront of technological innovation, consistently shaping the landscape of electronic advancements. Renowned for its commitment to quality and precision, Panasonic has become a trusted name in the global market. The company's dedication to pushing the boundaries of what's possible in electronic engineering has led to the creation of cutting-edge products, including the PANASONIC 4TPE470MCL capacitor.
Conclusion
The PANASONIC 10TPE220ML capacitor offers a powerful combination of high capacitance, low ESR, and compact size, making it an essential component for high-performance electronics. Its versatility and reliability ensure it is suitable for a variety of applications, from consumer electronics to industrial systems.
